A 16-LC Series
Manufacturer: Assmann WSW Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

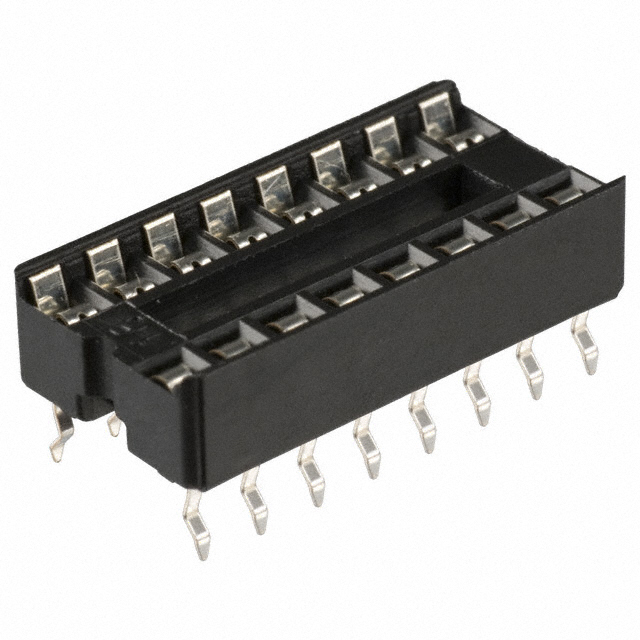

CONN SOCKET SKT 16 POS 2.54MM SOLDER ST THRU-HOLE TUBE
| Part | Termination | Features | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Post | Row Spacing | Type | Contact Finish - Mating | Contact Material - Post | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Contact Material - Mating | Pitch - Mating | Housing Material | Pitch - Post | Mounting Type | Material Flammability Rating | Termination Post Length | Current Rating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Solder | Open Frame | -55 °C | 85 °C | Tin | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Tin | Phosphor Bronze | 2 | 16 | 8 | Phosphor Bronze | 0.1 in | PBT Polybutylene Terephthalate | 0.1 in | Through Hole | UL94 V-0 | 0.124 in | 1 A | 30 mOhm |
 Assmann WSW Components | Solder | Open Frame | -55 °C | 85 °C | Tin | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Tin | Phosphor Bronze | 2 | 16 | 8 | Phosphor Bronze | 0.1 in | PBT Polybutylene Terephthalate | 0.1 in | Through Hole | UL94 V-0 | 0.124 in | 1 A | 30 mOhm |
