GBC10S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 10POS 2.54MM

Part	Material Flammability Rating	Mounting Type	Number of Positions	Contact Finish - Mating	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Material	Contact Finish - Post	Termination	Style	Shrouding	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]

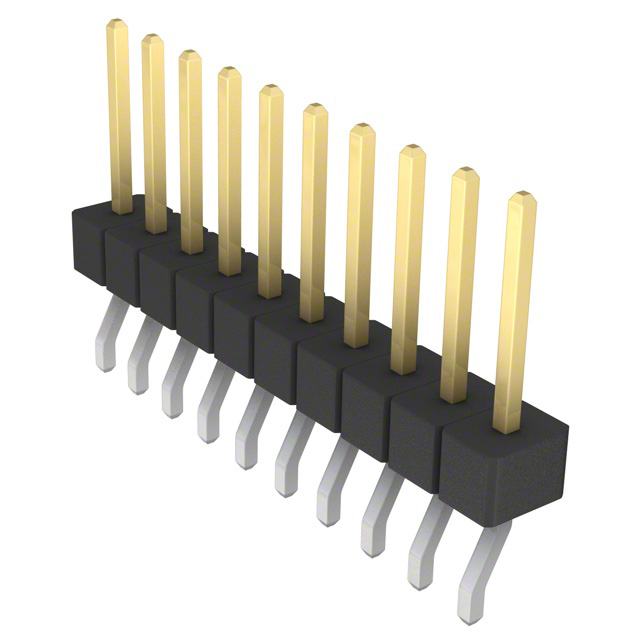

Sullins Connector Solutions GBC10SGSN-M89	UL94 V-0	Surface Mount Right Angle	10	Gold	Nylon 9T Polyamide (PA9T)	Black	All	Phosphor Bronze	Tin	Solder	Board to Board Cable	Unshrouded	Male Pin	2.54 µm	100 µin	3.56 mm	0.14 in	0.318 "	8.08 mm	Breakaway Header	1	-65 ░C	150 °C	Square	0.1 in	2.54 mm	3 A	10 çin	0.25 çm	Push-Pull
Sullins Connector Solutions GBC10SFBN-M30	UL94 V-0	Surface Mount	10	Gold	Nylon 9T Polyamide (PA9T)	Black	All	Phosphor Bronze	Tin	Solder	Board to Board Cable	Unshrouded	Male Pin	2.54 µm	100 µin	2.54 mm	0.1 in	0.318 "	8.08 mm	Breakaway Header	1	-65 ░C	150 °C	Square	0.1 in	2.54 mm	3 A	10 çin	0.25 çm	Push-Pull
Sullins Connector Solutions GBC10SFAN	UL94 V-0	Through Hole	10	Gold	Nylon 9T Polyamide (PA9T)	Black	All	Phosphor Bronze	Tin	Solder	Board to Board Cable	Unshrouded	Male Pin	2.54 µm	100 µin	2.54 mm	0.1 in	0.318 "	8.08 mm	Breakaway Header	1	-65 ░C	150 °C	Square	0.1 in	2.54 mm	3 A	10 çin	0.25 çm	Push-Pull	0.538 "	13.67 mm	0.12 in	3.05 mm
