SML-LXIL0603 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

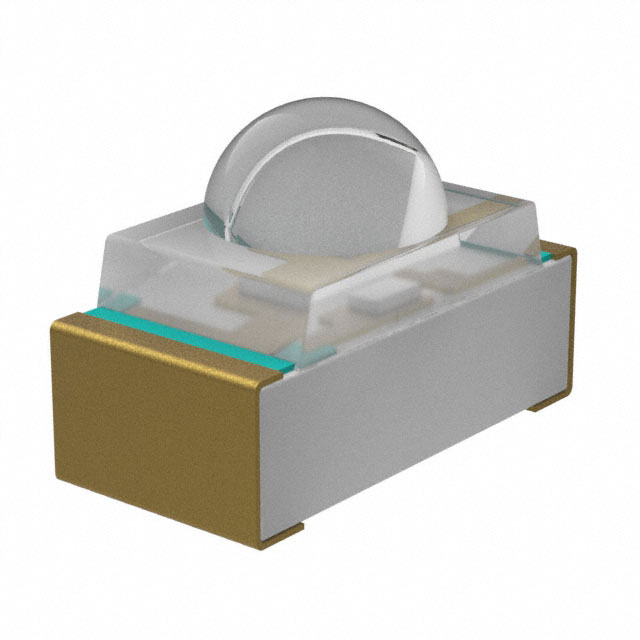

LED RED CLEAR TOP VIEW SMD
| Part | Lens Style | Millicandela Rating | Lens Transparency | Color | Wavelength - Peak | Height (Max) [Max] [z] | Viewing Angle | Lens Size [diameter] | Current - Test | Size / Dimension [x] | Size / Dimension [y] | Lens Color | Voltage - Forward (Vf) (Typ) | Mounting Type | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Round with Domed Top | 1600 mcd | Clear | Red | 630 nm | 1.4 mm | 75 ° | 0.79 mm | 20 mA | 1.64 mm | 0.84 mm | Colorless | 2.1 V | Surface Mount | 1608 Metric | 0603 |
Lumex Opto/Components Inc. | Round with Domed Top | 1350 mcd | Clear | Yellow | 585 nm | 1.4 mm | 75 ° | 0.79 mm | 20 mA | 1.64 mm | 0.84 mm | Colorless | 2.1 V | Surface Mount | 1608 Metric | 0603 |
Lumex Opto/Components Inc. | Round with Domed Top | 2135 mcd | Clear | Green | 520 nm | 1.4 mm | 75 ° | 0.79 mm | 20 mA | 1.64 mm | 0.84 mm | Colorless | 3 V | Surface Mount | 1608 Metric | 0603 |
Lumex Opto/Components Inc. | Round with Domed Top | 500 mcd | Clear | Blue | 470 nm | 1.4 mm | 75 ° | 0.79 mm | 20 mA | 1.64 mm | 0.84 mm | Colorless | 3 V | Surface Mount | 1608 Metric | 0603 |
