EN3L2M Series

Catalog

CONN RCPT MALE 2POS GOLD CRIMP

Part	Applications	Fastening Type	Contact Finish - Mating	Shielding	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Primary Material	Color	Contact Material	Connector Type	Backshell Material, Plating	Features	Material Flammability Rating	Orientation	Mounting Type	Voltage Rating	Ingress Protection	Insert Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3L2MCKX	General Purpose Instrumentation Marine Medical	Bayonet Lock	Gold	Unshielded	2	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C	Crimp	7.5 A	Plastic	Black	Copper Alloy	Male Pins Receptacle	Thermoplastic	Backshell Cable Clamp	UL94 V-0	Keyed	Free Hanging (In-Line)	250 VAC	IP66/IP68	Elastomer

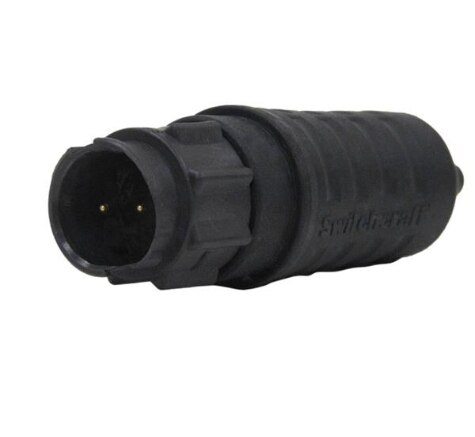

Switchcraft Inc. EN3L2M16LX	General Purpose Instrumentation Marine Medical	Bayonet Lock	Gold	Unshielded	2			65 °C	-40 °C		13 A	Plastic	Black	Copper Alloy	Male Pins Receptacle	Thermoplastic	Backshell Cable Clamp	UL94 V-0	Keyed	Free Hanging (In-Line)	250 VAC	IP66/IP68	Elastomer	5.84 mm	0.38 in	9.65 mm	0.23 in
Switchcraft Inc. EN3L2M16KX	General Purpose Instrumentation Marine Medical	Bayonet Lock	Gold	Unshielded	2	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C		13 A	Plastic	Black	Copper Alloy	Male Pins Receptacle	Thermoplastic	Backshell Cable Clamp	UL94 V-0	Keyed	Free Hanging (In-Line)	250 VAC	IP66/IP68	Elastomer
Switchcraft Inc. EN3L2M16CX	General Purpose Instrumentation Marine Medical	Bayonet Lock	Gold	Unshielded	2	4.06 mm 6.73 mm	0.16 in 0.265 in	65 °C	-40 °C	Crimp	13 A	Plastic	Black	Copper Alloy	Male Pins Receptacle	Thermoplastic	Backshell Cable Clamp	UL94 V-0	Keyed	Free Hanging (In-Line)	250 VAC	IP66/IP68	Elastomer
