VO610 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

OPTOISOLATR 5KV TRANSISTOR 4-SMD

Part	Output Type	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min)	Supplier Device Package	Turn On / Turn Off Time (Typ)	Current - Output / Channel [custom]	Rise / Fall Time (Typ)	Vce Saturation (Max) [Max]	Mounting Type	Input Type	Voltage - Output (Max) [Max]	Number of Channels [custom]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Max)	Package / Case	Package / Case	Current Transfer Ratio (Min) [Min]
Vishay Semiconductor Opto Division VO610A-4X017T	Transistor	320 %	160 %	4-SMD	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Surface Mount	DC	70 V	1	4-SMD Gull Wing	-55 C	110 °C	1.25 V	60 mA
Vishay Semiconductor Opto Division VO610A-2	Transistor		63 %	4-DIP	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Through Hole	DC	70 V	1	4-DIP	-55 C	110 °C	1.25 V	60 mA	125 %	0.3 in	7.62 mm
Vishay Semiconductor Opto Division VO610A-3X018T	Transistor	200 %		4-SMD	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Surface Mount	DC	70 V	1	4-SMD Gull Wing	-55 C	110 °C	1.25 V	60 mA				100 %

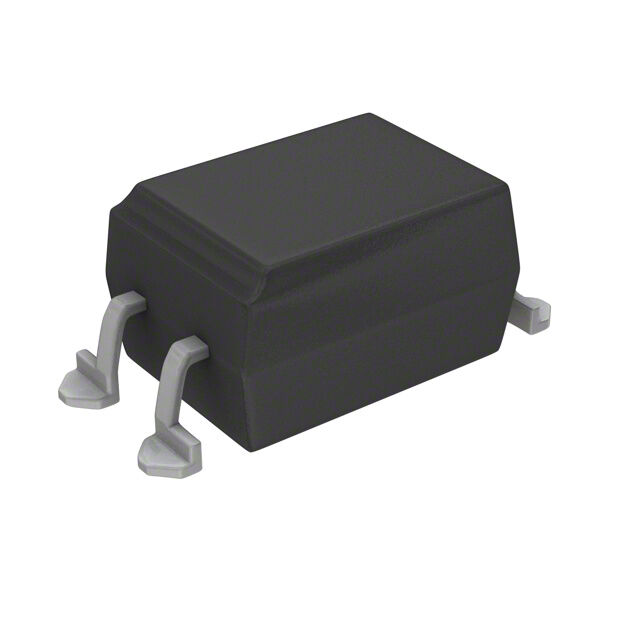

Vishay Semiconductor Opto Division VO610A-3X019T	Transistor	200 %		4-SMD	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Surface Mount	DC	70 V	1	4-SMD Gull Wing	-55 C	110 °C	1.25 V	60 mA				100 %
Vishay Semiconductor Opto Division VO610A-3X001	Transistor	200 %		4-DIP	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Through Hole	DC	70 V	1	4-DIP	-55 C	110 °C	1.25 V	60 mA		0.3 in	7.62 mm	100 %
Vishay Semiconductor Opto Division VO610A-1X019T	Transistor		40 %	4-SMD	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Surface Mount	DC	70 V	1	4-SMD Gull Wing	-55 C	110 °C	1.25 V	60 mA	80 %
Vishay Semiconductor Opto Division VO610A-1	Transistor		40 %	4-DIP	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Through Hole	DC	70 V	1	4-DIP	-55 C	110 °C	1.25 V	60 mA	80 %	0.3 in	7.62 mm
Vishay Semiconductor Opto Division VO610A-4X019T	Transistor	320 %	160 %	4-SMD	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Surface Mount	DC	70 V	1	4-SMD Gull Wing	-55 C	110 °C	1.25 V	60 mA
Vishay Semiconductor Opto Division VO610A-4X008T	Transistor	320 %	160 %	4-SMD	5 µs 6 µs	50 mA	3 µs 4.7 µs	300 mV	Surface Mount	DC	70 V	1	4-SMD Gull Wing	-55 C	110 °C	1.25 V	60 mA
