CFM41S Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

SWITCHING POWER SUPPLIES 40W 90-264VACIN 24VDCOUT 1.67A PCB

Part	Load Regulation	Line Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Features	Efficiency	Type	Applications	Voltage - Output 1	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	Package / Case	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [custom]	Current - Output 1	Voltage - Isolation
Cincon Electronics Co. LTD CFM41S240	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Open Frame	Household Appliances ITE (Commercial)	24 V	CE cURus DEMKO FCC	2 in	1.01 "	50.8 mm	2 in	50.8 mm	25.6 mm	40 W	1.67 A	6-DIP Module	Through Hole
Cincon Electronics Co. LTD CFM41S050-E	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	87 %	Enclosed	Household Appliances ITE (Commercial)	5 V	CE cURus DEMKO FCC	2.14 "	1.04 in		2.14 "	54.4 mm		30 Watts	6 A	6-DIP Module	Through Hole	26.5 mm	54.5 mm
Cincon Electronics Co. LTD CFM41S360-E	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Enclosed	Household Appliances ITE (Commercial)		CE cURus DEMKO FCC	2.14 "	1.04 in		2.14 "	54.4 mm		40 W	1.11 A	6-DIP Module	Through Hole	26.5 mm	54.5 mm	36 V

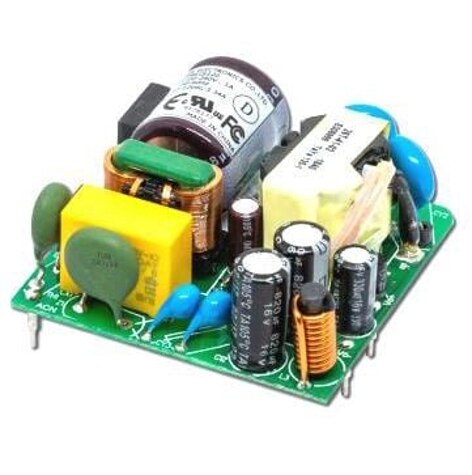

Cincon Electronics Co. LTD CFM41S480	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Open Frame	Household Appliances ITE (Commercial)	48 V	CE cURus DEMKO FCC	2 in	1.01 "	50.8 mm	2 in	50.8 mm	25.6 mm	40 W	830 mA	6-DIP Module	Through Hole
Cincon Electronics Co. LTD CFM41S240-E	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Enclosed	Household Appliances ITE (Commercial)	24 V	CE cURus DEMKO FCC	2.14 "	1.04 in		2.14 "	54.4 mm		40 W	1.67 A	6-DIP Module	Through Hole	26.5 mm	54.5 mm

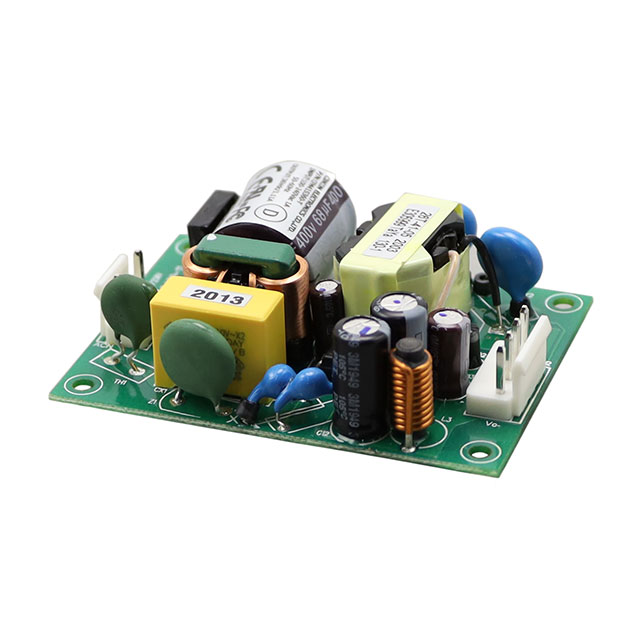

Cincon Electronics Co. LTD CFM41S360-T			90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Open Frame	Household Appliances ITE (Commercial)		CE cURus DEMKO FCC	2.7 in	0.78 in	50.8 mm	2 in	68.6 mm	19.7 mm	40 W			Chassis Mount			36 V	1.11 A	3000 V
Cincon Electronics Co. LTD CFM41S050	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	87 %	Open Frame	Household Appliances ITE (Commercial)	5 V	CE cURus DEMKO FCC	2 in	1.01 "	50.8 mm	2 in	50.8 mm	25.6 mm	30 Watts	6 A	6-DIP Module	Through Hole

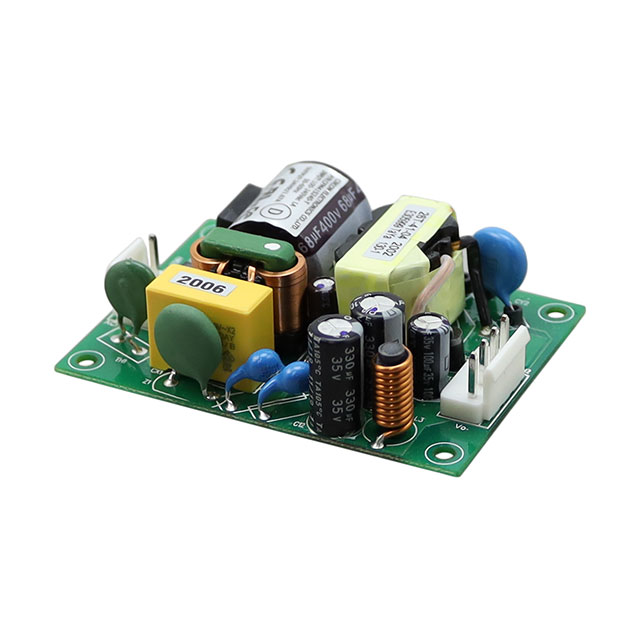

Cincon Electronics Co. LTD CFM41S240-T			90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Open Frame	Household Appliances ITE (Commercial)	24 V	CE cURus DEMKO FCC	2.7 in	0.78 in	50.8 mm	2 in	68.6 mm	19.7 mm	40 W			Chassis Mount				1.67 A	3000 V

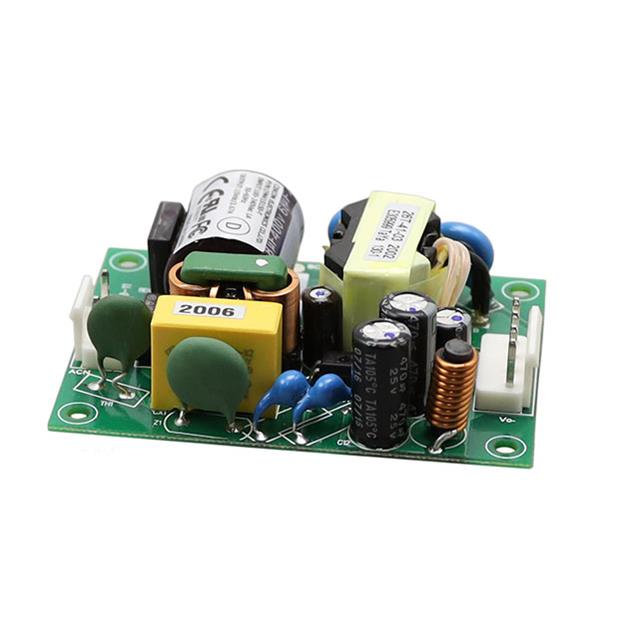

Cincon Electronics Co. LTD CFM41S150-T			90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Open Frame	Household Appliances ITE (Commercial)	15 V	CE cURus DEMKO FCC	2.7 in	0.78 in	50.8 mm	2 in	68.6 mm	19.7 mm	40 W			Chassis Mount				2.67 A	3000 V

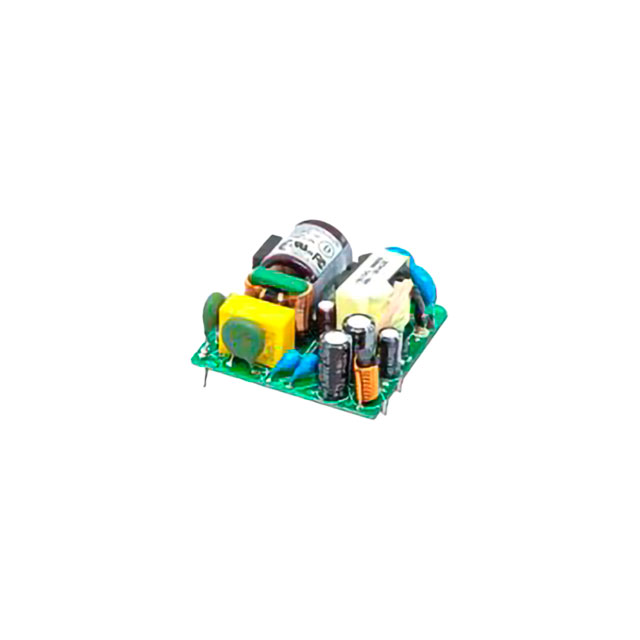

Cincon Electronics Co. LTD CFM41S360	±1%	0.5 %	90 VAC 120 VDC	264 VAC 370 VDC	1	-40 °C	85 °C	60335-1 62368-1	Universal Input	90 %	Open Frame	Household Appliances ITE (Commercial)		CE cURus DEMKO FCC	2 in	1.01 "	50.8 mm	2 in	50.8 mm	25.6 mm	40 W	1.11 A	6-DIP Module	Through Hole			36 V
