9177-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

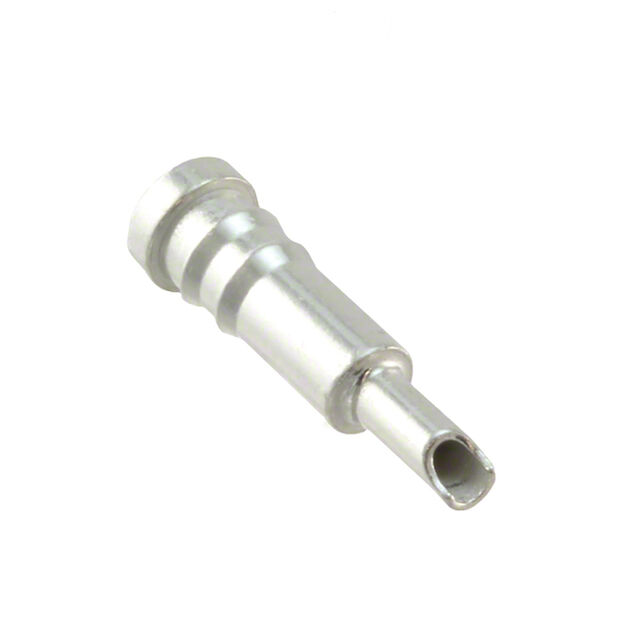

CONN PIN RCPT .065-.082 PRESSFIT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Tail Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Socket Depth | Socket Depth | Contact Material | Tail Diameter [diameter] | Tail Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | Gold | 2.72 mm | 0.107 in | 15.62 mm | 0.615 in | 30 Áin | 0.76 Ám | 4.5 mm | 0.177 in | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | Solder Cup | 0.151 in | 3.84 mm | 0.337 in | 8.56 mm | Beryllium Copper | 0.08 in | 2.03 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | Gold | 2.72 mm | 0.107 in | 15.62 mm | 0.615 in | 30 Áin | 0.76 Ám | 4.5 mm | 0.177 in | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | Solder Cup | 0.151 in | 3.84 mm | 0.337 in | 8.56 mm | Beryllium Copper | 0.08 in | 2.03 mm |
