725-140 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 140POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows [custom]	Number of Positions/Bay/Row [custom]	Gender	Pitch	Pitch	Contact Material	Number of Positions	Card Type	Color	Mounting Type
EDAC Inc. 725-140-540-201	2	Polyester Thermoplastic	-40 C	105 ░C	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	30 Áin	0.76 Ám	Press-Fit Wire Wrap	2	70	Female	0.1 "	2.54 mm	Copper Alloy	140	Non Specified - Dual Edge	Black	Through Hole
EDAC Inc. 725-140-541-201	2	Polyester Thermoplastic	-40 C	105 ░C	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	30 Áin	0.76 Ám	Press-Fit Wire Wrap	2	70	Female	0.1 "	2.54 mm	Copper Alloy	140	Non Specified - Dual Edge	Black	Through Hole
EDAC Inc. 725-140-545-201	2	Polyester Thermoplastic	-40 C	105 ░C	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	30 Áin	0.76 Ám	Press-Fit Wire Wrap	2	70	Female	0.1 "	2.54 mm	Copper Alloy	140	Non Specified - Dual Edge	Black	Through Hole
EDAC Inc. 725-140-522-201	2	Polyester Thermoplastic	-40 C	105 ░C	Gold	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	30 Áin	0.76 Ám	Press-Fit	2	70	Female	0.1 "	2.54 mm	Copper Alloy	140	Non Specified - Dual Edge	Black	Through Hole

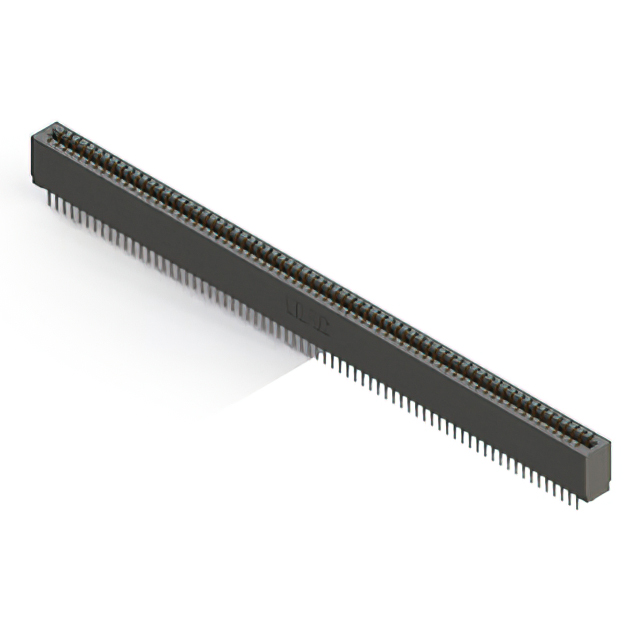

EDAC Inc. 725-140-560-201	2	Polyester Thermoplastic	-40 C	105 ░C	Gold	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	30 Áin	0.76 Ám	Press-Fit	2	70	Female	0.1 "	2.54 mm	Copper Alloy	140	Non Specified - Dual Edge	Black	Through Hole
