C146 10F024 Series

Catalog

CONN BASE SIDE ENTRY SZE24 PG21

Part	Ingress Protection	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size	Lock Location	Connector Type	Style	Features

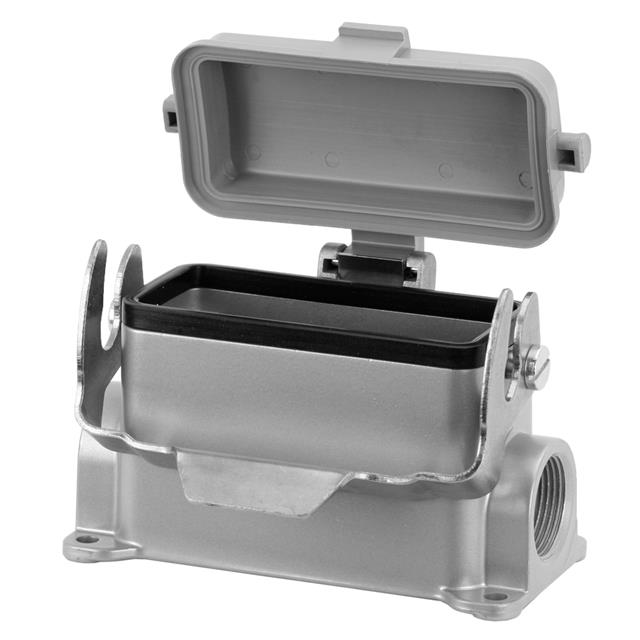

Amphenol Tuchel Industrial C146 10F024 606 1	IP65 - Dust Tight Water Resistant	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	E24	Locking Clip (1) on Base Bottom	Base - Box Mount	Side Entry

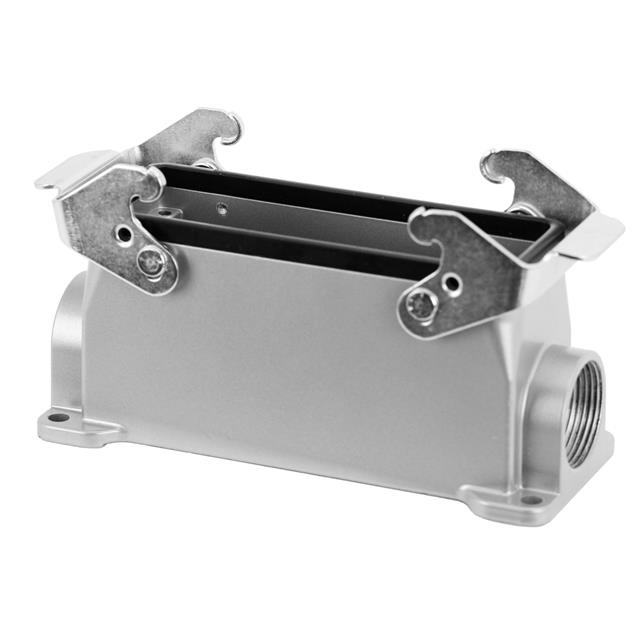

Amphenol Tuchel Industrial C146 10F024 600 1	IP65 - Dust Tight Water Resistant	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	E24	Locking Clip (2) on Base Bottom	Base - Box Mount	Side Entry

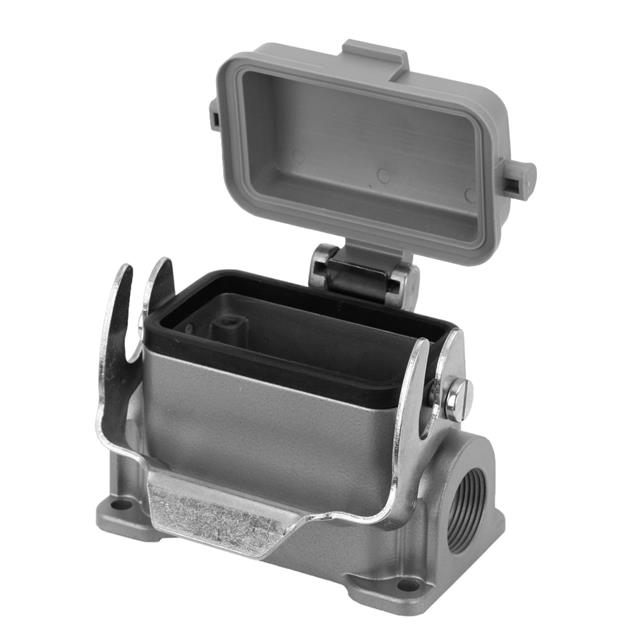

Amphenol Tuchel Industrial C146 10F024 806 1	IP65 - Dust Tight Water Resistant	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	E24	Locking Clip (1) on Base Bottom	Base - Box Mount	Side Entry	Cover
Amphenol Tuchel Industrial C146 10F024 500 1	IP65 - Dust Tight Water Resistant	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	E24	Locking Clip (2) on Base Bottom	Base - Box Mount	Side Entry
