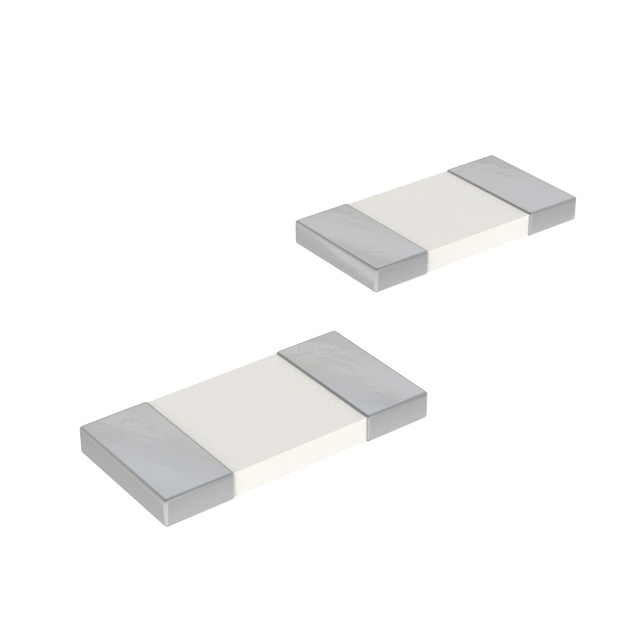

CE201210 Series

Catalog

FIXED IND 33NH 300MA 600MOHM SMD

Part	Mounting Type	Supplier Device Package	Tolerance	Current Rating (Amps)	Inductance	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Inductance Frequency - Test	Q @ Freq	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Kit Type	Packages Included	Quantity	Quantity	Quantity	Inductance Range [Min]	Inductance Range [Max]	Style
Bourns Inc. CE201210-33NJ	Surface Mount	0805 (2012 Metric)	5 %	0.3 A	33 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	1.2 GHz	0.041 in	1.03 mm	Multilayer	100 MHz
Bourns Inc. CE201210-8N2J	Surface Mount	0805 (2012 Metric)	5 %	0.3 A	8.2 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	2.4 GHz	0.041 in	1.03 mm	Multilayer	100 MHz	21 100 MHz	280 mOhm
Bourns Inc. CE201210-3N3J	Surface Mount	0805 (2012 Metric)	5 %	0.3 A	3.3 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	4 GHz	0.041 in	1.03 mm	Multilayer	100 MHz	16 100 MHz		130 mOhm
Bourns Inc. CE201210-2N2D	Surface Mount	0805 (2012 Metric)	0.3 nH	0.3 A		Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	4 GHz	0.041 in	1.03 mm	Multilayer	100 MHz			100 mOhm	100 MHz	18
Bourns Inc. CE201210-56NJ	Surface Mount	0805 (2012 Metric)	5 %	0.3 A	56 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	800 MHz	0.041 in	1.03 mm	Multilayer	100 MHz	23 100 MHz	750 mOhm
Bourns Inc. CE201210-10NJ	Surface Mount	0805 (2012 Metric)	5 %	0.3 A	10 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	2.1 GHz	0.041 in	1.03 mm	Multilayer	100 MHz	20 100 MHz	300 mOhm
Bourns Inc. CE201210-LAB1	Surface Mount					Ceramic																			Fixed	0805 (2012 Metric)	40 Each	18 Values	720 Pieces	1.5 nH	470 nH	Multilayer
Bourns Inc. CE201210-R47J	Surface Mount	0805 (2012 Metric)	5 %	0.3 A	470 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	200 MHz	0.041 in	1.03 mm	Multilayer	50 MHz	17 100 MHz	1.5 Ohm
Bourns Inc. CE201210-1N8D	Surface Mount	0805 (2012 Metric)	0.3 nH	0.3 A	1.8 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	4 GHz	0.041 in	1.03 mm	Multilayer	100 MHz			100 mOhm	100 MHz	18
Bourns Inc. CE201210-3N3D	Surface Mount	0805 (2012 Metric)	0.3 nH	0.3 A	3.3 nH	Ceramic	-55 C	125 °C	Unshielded	0805	2 mm	1.25 mm	0.049 "	0.079 in	4 GHz	0.041 in	1.03 mm	Multilayer	100 MHz	16 100 MHz		130 mOhm
