1734035 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

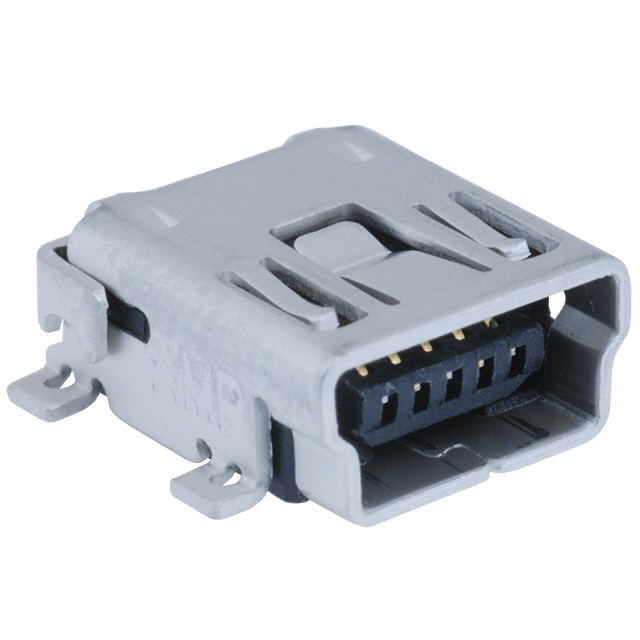

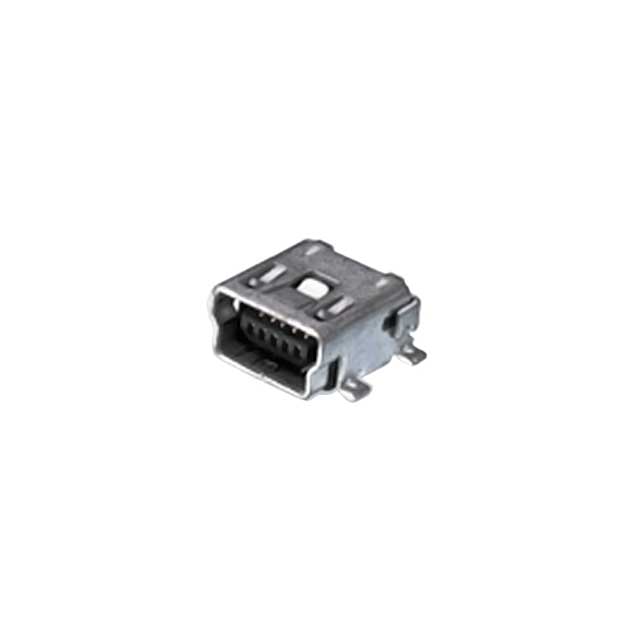

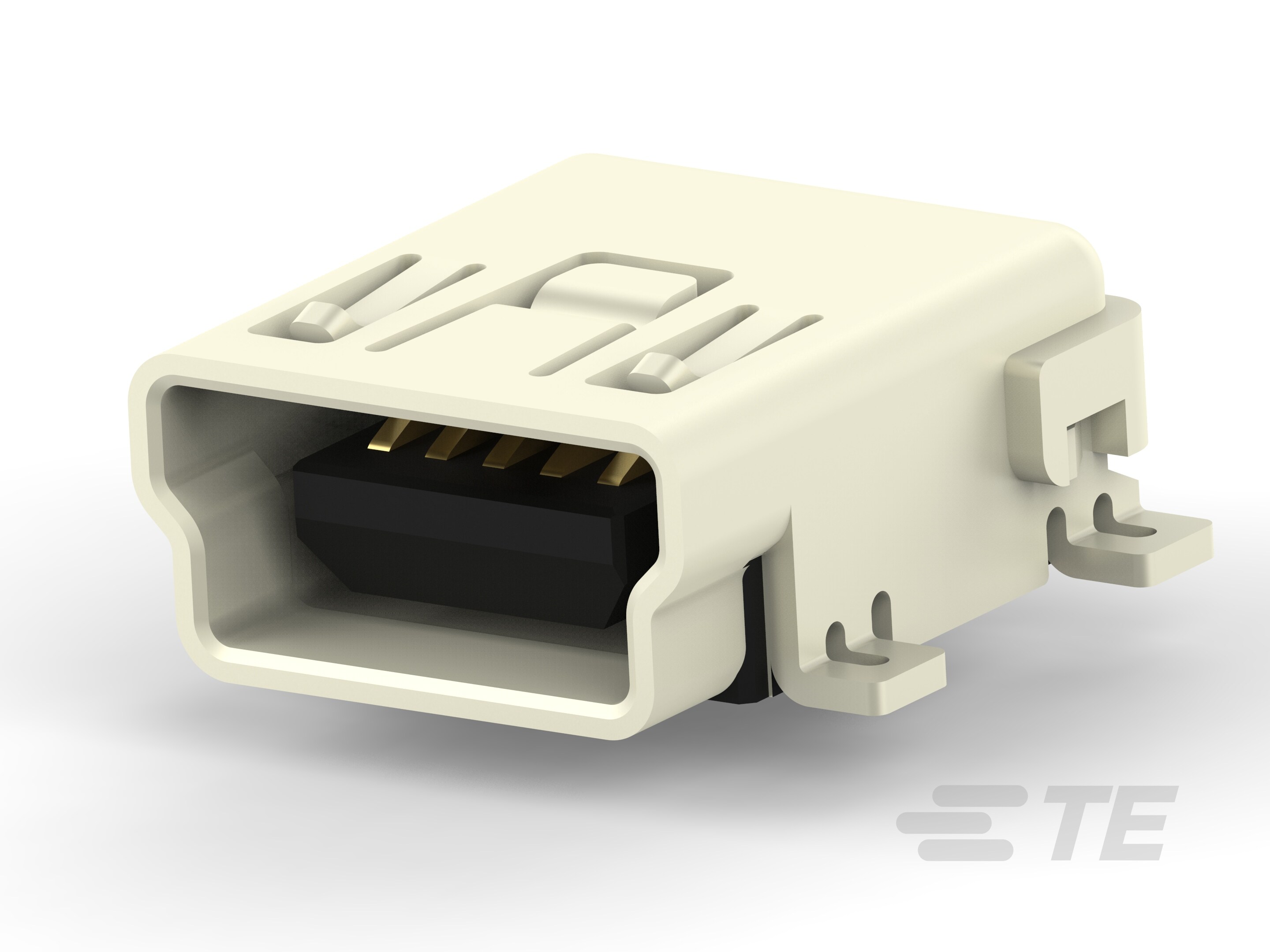

MINI USB R/A SURFACE MOUNT TYPE B
| Part | Shell/Shielding Material | Material Flammability Rating | Insulation Color | Contact Finish | Specifications | Shielding | Mounting Feature | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Mating Cycles | Number of Ports | Features | Number of Contacts | Termination | Gender | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Board Guide Solder Retention | 5 | Solder | Receptacle | 30 VAC |
 TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Board Guide Solder Retention | 5 | Solder | Receptacle | 30 VAC |
 TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Solder Retention | 5 | Solder | Receptacle | 30 VAC |
TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Natural | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Board Guide Solder Retention | 5 | Solder | Receptacle | 30 VAC |
 TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Board Guide Solder Retention | 5 | Solder | Receptacle | 30 VAC |
 TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Solder Retention | 5 | Solder | Receptacle | 30 VAC |
TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Board Guide Solder Retention | 5 | Solder | Receptacle | 30 VAC |
 TE Connectivity AMP Connectors | Steel (SUS304) | UL94 V-0 | Black | Gold | USB 2.0 | Shielded | Horizontal | USB - mini B | 85 °C | -40 C | Right Angle Surface Mount | 5000 | 1 | Solder Retention | 5 | Solder | Receptacle | 30 VAC |
