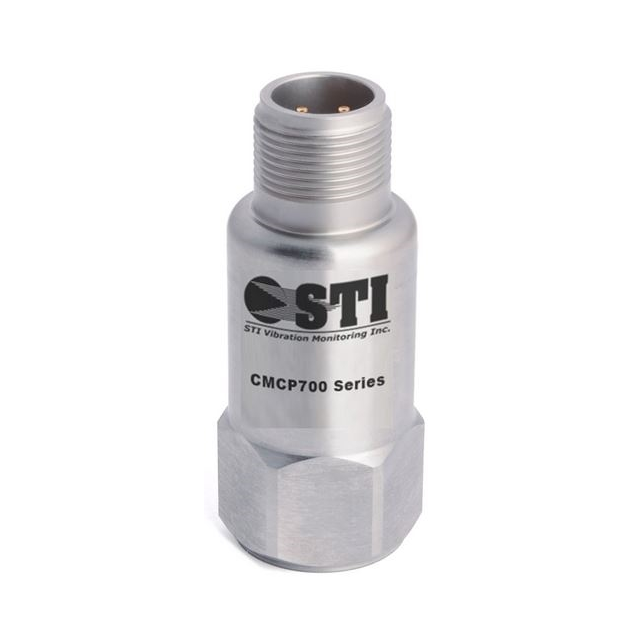

CMCP782 Series
Manufacturer: STI Vibration Monitoring
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
ECONOMICAL ACCEL, 100 MV/G TOP
| Part | Package / Case | Type | Sensitivity (mV/g) | Bandwidth (Min) | Bandwidth (Max) | Mounting Type | Axis | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Min) | Operating Temperature (Max) | Acceleration Range (Maximum) | Acceleration Range (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STI Vibration Monitoring | Module | Analog | 100 mV/g | 1.5 Hz | 10 kHz | Chassis Mount | X | 10 VDC | 12 V | -55 °C | 130 °C | 60 g | -60 g |
