837-060 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Color	Contact Material	Number of Rows [custom]	Pitch	Pitch	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions/Bay/Row	Number of Positions	Card Type	Contact Finish	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 837-060-540-208	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Wire Wrap	30	60	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening

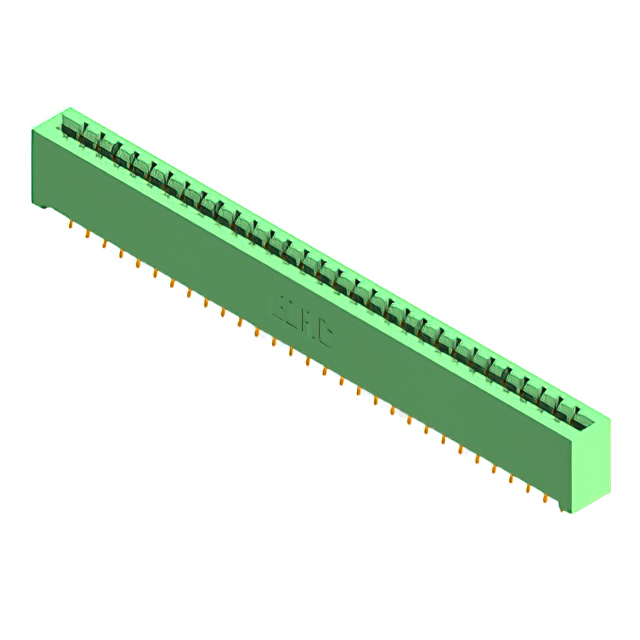

EDAC Inc. 837-060-556-201	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm		Card Extender
EDAC Inc. 837-060-520-812	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded		0.128 "	3.25 mm
EDAC Inc. 837-060-540-201	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Wire Wrap	30	60	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 837-060-523-812	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded		0.128 "	3.25 mm

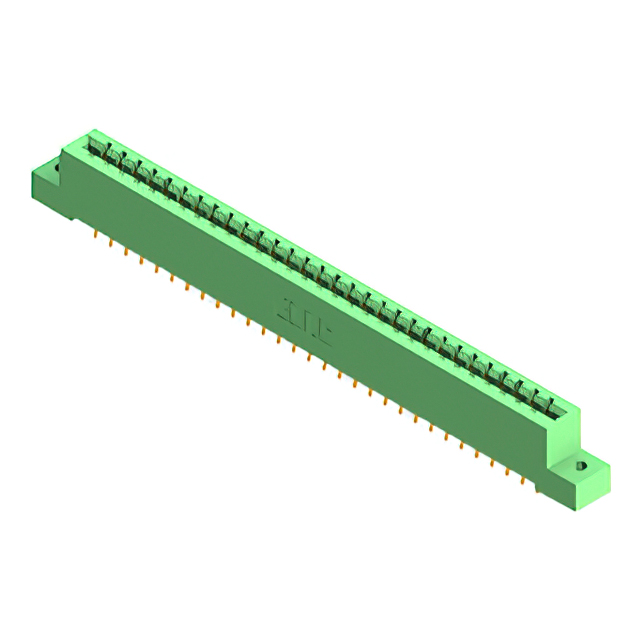

EDAC Inc. 837-060-556-202	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	Card Extender	0.128 "	3.25 mm

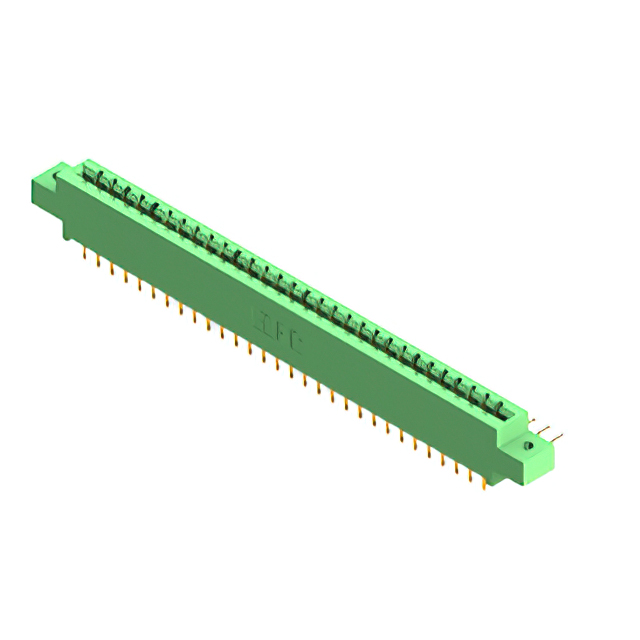

EDAC Inc. 837-060-558-802	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Right Angle Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm			0.128 "	3.25 mm
EDAC Inc. 837-060-520-807	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening
EDAC Inc. 837-060-542-804	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Wire Wrap	30	60	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm			0.156 "	3.96 mm
EDAC Inc. 837-060-558-804	Diallyl Phthalate (DAP)	2	Green	Copper Alloy	2	3.96 mm	0.156 in	Female	125 °C	-40 C	Solder	30	60	Non Specified - Dual Edge	Gold	Right Angle Through Hole	Cantilever	0.25 Ám	10 Áin	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm			0.156 "	3.96 mm
