D01-990 Series

Catalog

CONN PIN RCPT .016-.020 SOLDER

Part	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish	Termination	Tail Type	Features
Harwin Inc. D01-9901301	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail
Harwin Inc. D01-9902401	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 24

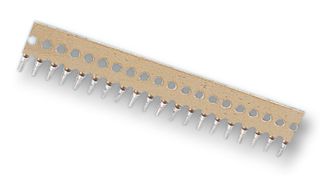

Harwin Inc. D01-9902001	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 20

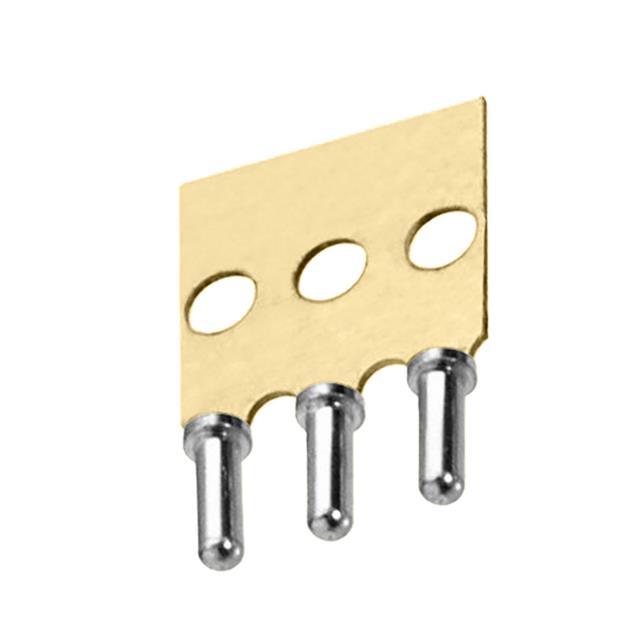

Harwin Inc. D01-9900301	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 3

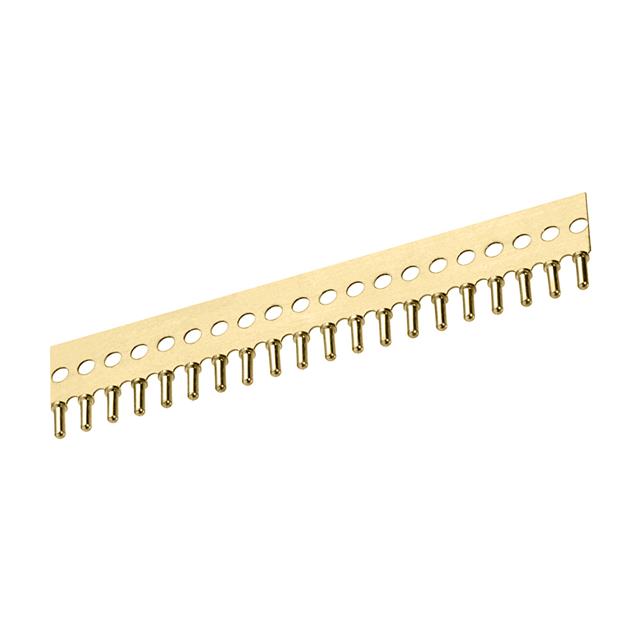

Harwin Inc. D01-9902005	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 20
Harwin Inc. D01-9900401	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 4
Harwin Inc. D01-9900605	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail
Harwin Inc. D01-9901005	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail

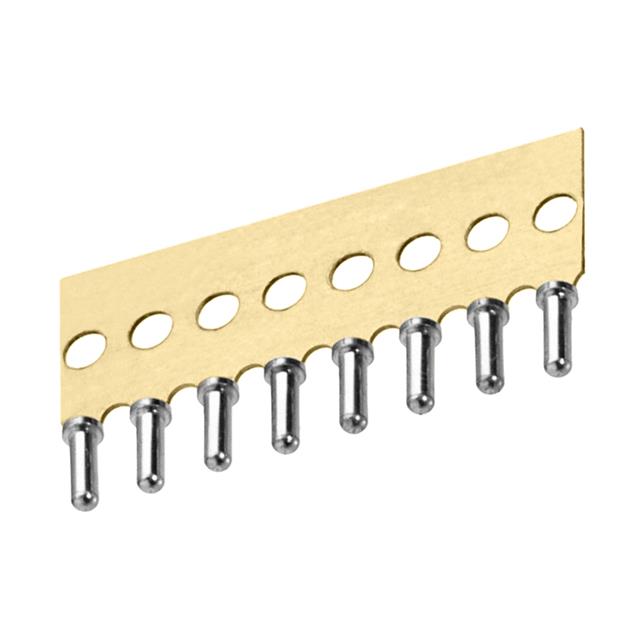

Harwin Inc. D01-9900801	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 8
Harwin Inc. D01-9900901	6 N	2 N	100 °C	-55 C	1.09 mm	0.043 in	0.99 mm	0.039 in	0.057 in	1.45 mm	0.124 in	3.15 mm	0.142 in	3.61 mm	Beryllium Copper	Gold	Solder	No Tail	Strip of 9
