WP5603 Series

Catalog

LED YELLOW DIFFUSED 5MM OVAL T/H

Part	Millicandela Rating	Configuration	Supplier Device Package	Lens Style	Package / Case	Color	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lens Transparency	Lens Size [y]	Lens Size [x]	Lens Color	Viewing Angle [x]	Viewing Angle [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Mounting Type	Wavelength - Dominant	Viewing Angle	Height (Max) [Max] [z]

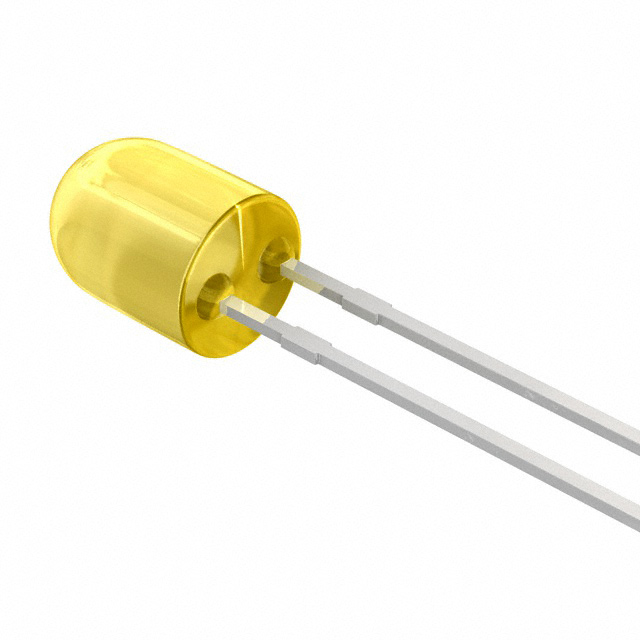

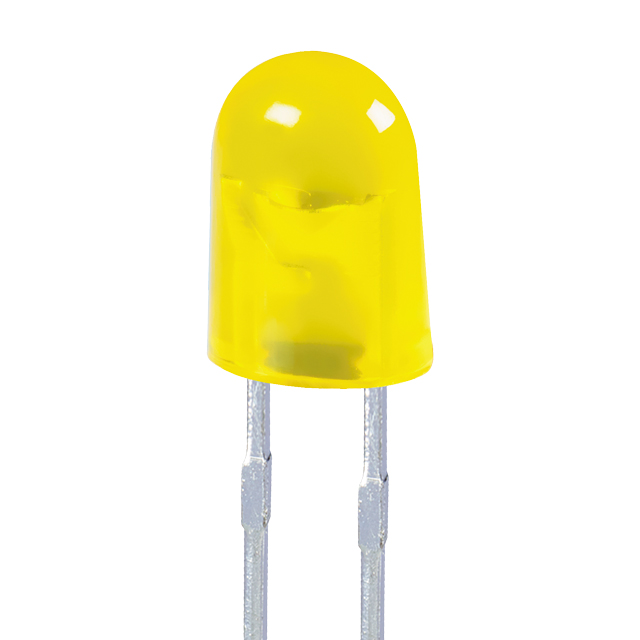

Kingbright WP5603SYDLK/SD/J3	1300 mcd	Standard	5mm Oval	Oval with Domed Top	Radial	Yellow	5.2 mm	3.8 mm	20 mA	Diffused	3.8 mm	5.2 mm	Yellow	80 °	40 °	2 V	590 nm	Through Hole	590 nm
Kingbright WP5603SYDL/SD/J3	1600 mcd	Standard	5mm Oval	Oval with Domed Top	Radial	Yellow	5.2 mm	3.8 mm	20 mA	Diffused	3.8 mm	5.2 mm	Yellow			2 V	590 nm	Through Hole	590 nm	40 ° 80 °	7 mm

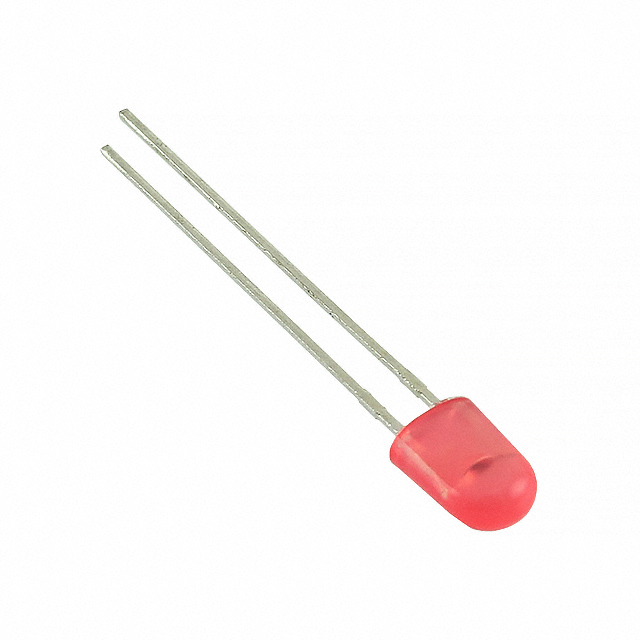

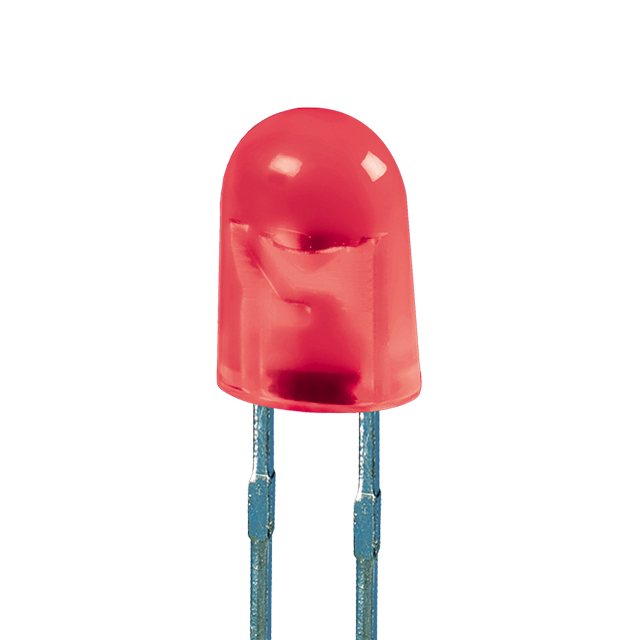

Kingbright WP5603SIDLK/SD/J3	2400 mcd	Standard	5mm Oval	Oval with Domed Top	Radial	Red	5.2 mm	3.8 mm	20 mA	Diffused	3.8 mm	5.2 mm	Red	80 °	40 °	2.2 V	640 nm	Through Hole	625 nm
Kingbright WP5603SIDL/SD/J3	1400 mcd	Standard	5mm Oval	Oval with Domed Top	Radial	Red	5.2 mm	3.8 mm	20 mA	Diffused	3.8 mm	5.2 mm	Red			2.2 V	640 nm	Through Hole	625 nm	40 ° 80 °	7 mm

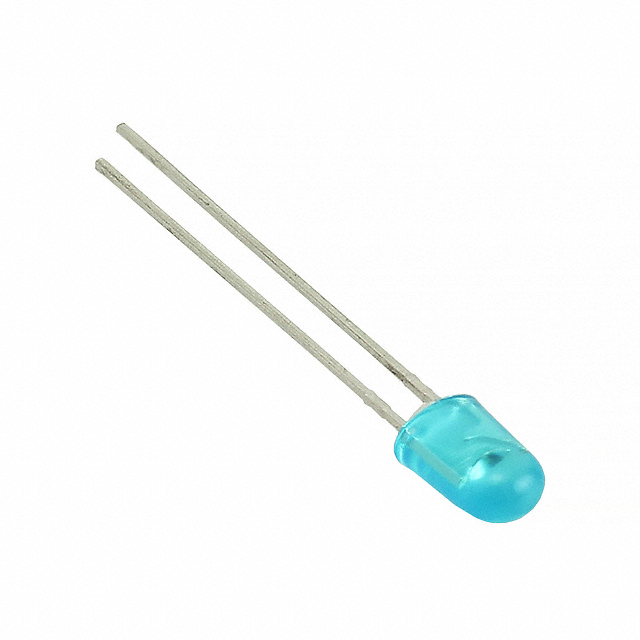

Kingbright WP5603QBDL/SD/G	1100 mcd	Standard	5mm Oval	Oval with Domed Top	Radial	Blue	5.2 mm	3.8 mm	20 mA	Diffused	3.8 mm	5.2 mm	Blue			3.3 V	461 nm	Through Hole	465 nm	40 ° 80 °	7 mm

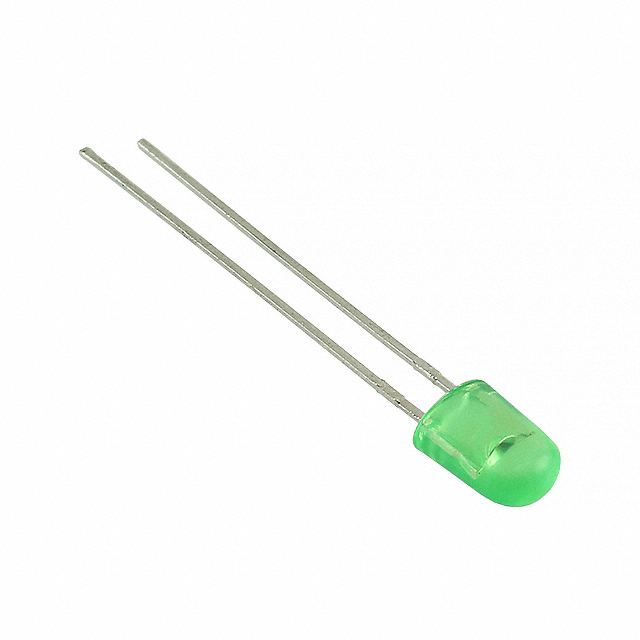

Kingbright WP5603ZGDL/SD/G	5000 mcd	Standard	5mm Oval	Oval with Domed Top	Radial	Green	5.2 mm	3.8 mm	20 mA	Diffused	3.8 mm	5.2 mm	Green			3.2 V	520 nm	Through Hole	525 nm	40 ° 80 °	7 mm
