LSH Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

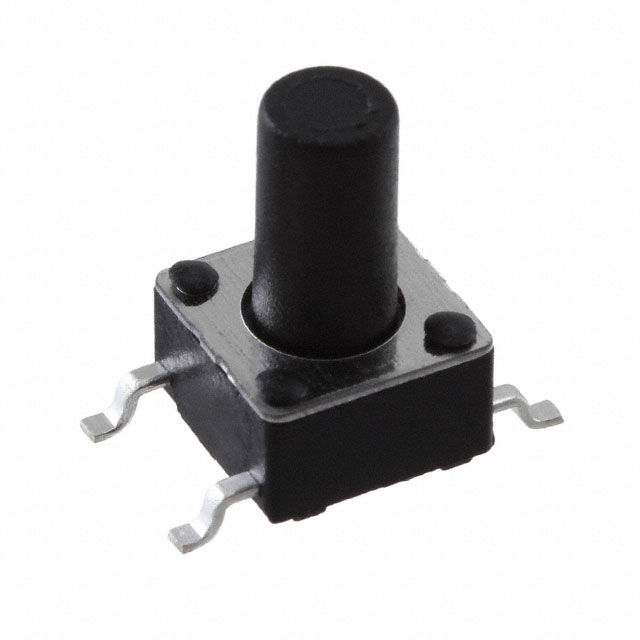

TACTILE SWITCHES SHORT TRAVEL SWITCH 6X6, 9.5MM
| Part | Mechanical Life | Switch Travel | Mounting Type | Features | Operating Force | Illumination | Termination Style | Contact Rating @ Voltage | Switch Function | Ingress Protection | Actuator Height off PCB, Vertical [z] | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Outline [x] | Outline [y] | Circuit | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 100000 Cycles | 0.25 mm | Surface Mount | Tactile Feedback | 160 gf | Non-Illuminated | Gull Wing | 0.05 A 12 VDC | Off-Mom | IP40 | 9.5 mm | -20 ░C | 70 °C | Standard | 6 mm | 6 mm | SPST-NO | Top Actuated |
