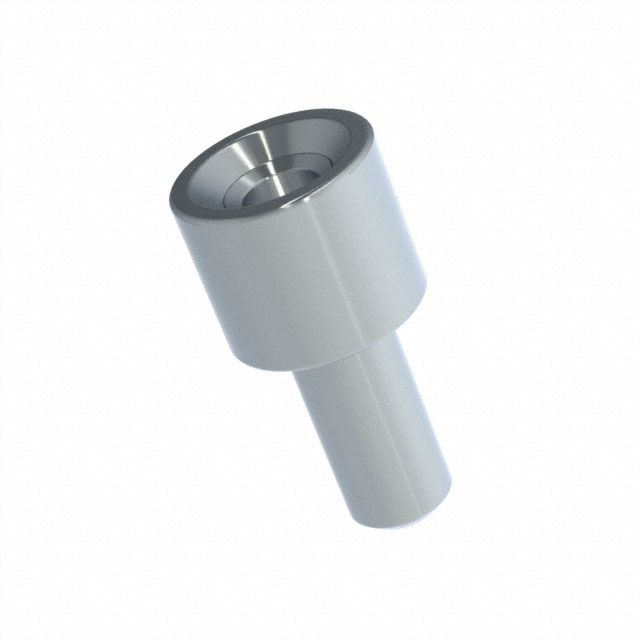

0284-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.034 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Socket Depth [z]	Socket Depth [z]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

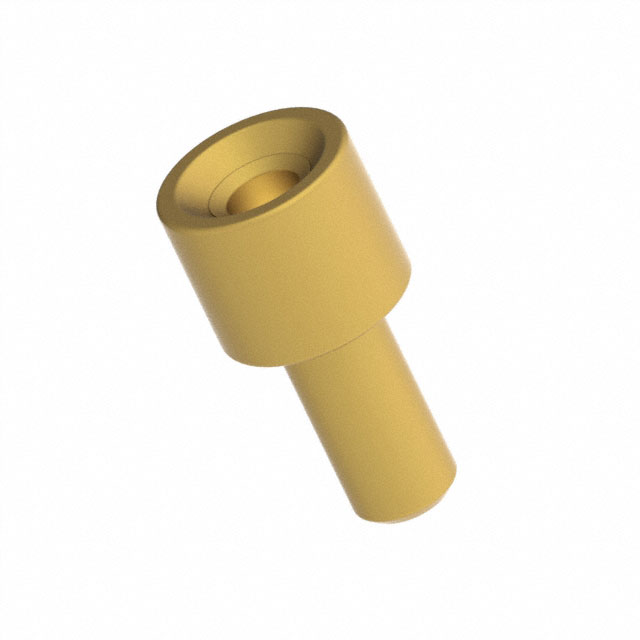

Mill-Max Manufacturing Corp. 0284-0-15-15-16-27-10-0	-55 C	125 °C	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.025 in	0.64 mm	0.125 in	3.18 mm	No Tail	30 Áin	0.76 Ám	Gold	Solder	0.07 in	1.78 mm	6.35 mm	0.25 in	0.21 in	5.33 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0284-0-57-15-16-27-10-0	-55 C	125 °C	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.025 in	0.64 mm	0.125 in	3.18 mm	No Tail	30 Áin	0.76 Ám	Gold	Solder	0.07 in	1.78 mm	6.35 mm	0.25 in	0.21 in	5.33 mm	0.051 in	1.3 mm

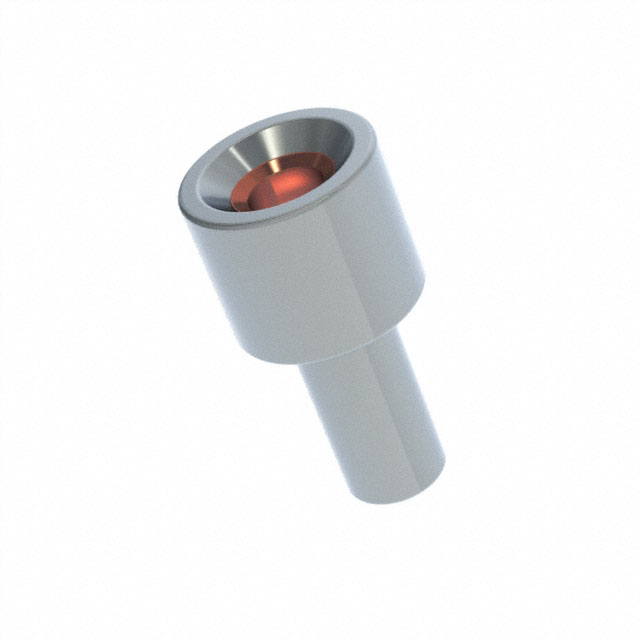

Mill-Max Manufacturing Corp. 0284-0-15-80-16-14-10-0	-55 C	125 °C	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.025 in	0.64 mm	0.125 in	3.18 mm	No Tail	10 Áin	0.25 Ám	Gold	Solder	0.07 in	1.78 mm	6.35 mm	0.25 in	0.21 in	5.33 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0284-0-15-01-16-01-10-0	-55 C	125 °C	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.025 in	0.64 mm	0.125 in	3.18 mm	No Tail	200 Áin	5.08 Ám	Tin-Lead	Solder	0.07 in	1.78 mm	6.35 mm	0.25 in	0.21 in	5.33 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0284-0-15-01-16-27-10-0	-55 C	125 °C	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.025 in	0.64 mm	0.125 in	3.18 mm	No Tail	30 Áin	0.76 Ám	Gold	Solder	0.07 in	1.78 mm	6.35 mm	0.25 in	0.21 in	5.33 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0284-0-15-80-16-27-10-0	-55 C	125 °C	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.025 in	0.64 mm	0.125 in	3.18 mm	No Tail	30 Áin	0.76 Ám	Gold	Solder	0.07 in	1.78 mm	6.35 mm	0.25 in	0.21 in	5.33 mm	0.051 in	1.3 mm
