R11270 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC / FEMALE-FEMALE ADAPTER
| Part | Mating Cycles | Dielectric Material | Body Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Style | Center Contact Plating | Conversion Type | Impedance | Convert To (Adapter End) | Frequency - Max [Max] | Convert From (Adapter End) | Mounting Type | Adapter Type | Adapter Series | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

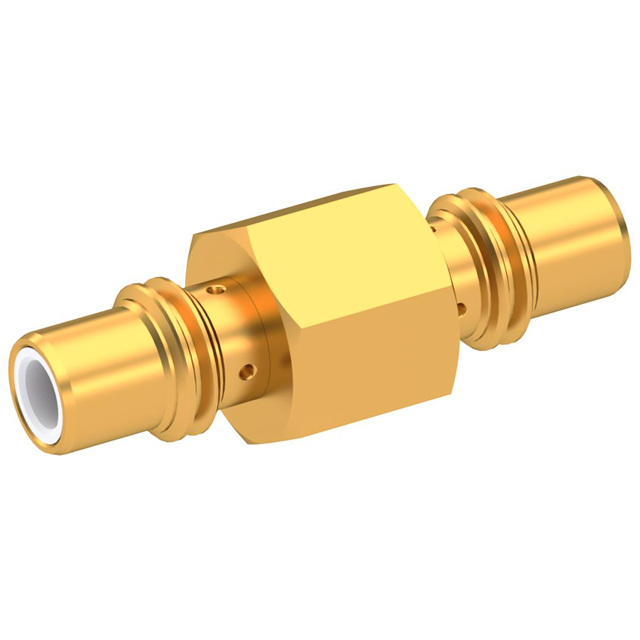

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | -65 ░C | 165 °C | Gold | Straight | Gold | Same Series | 50 Ohms | Female Socket SMC Plug | 10 GHz | Female Socket SMC Plug | Free Hanging (In-Line) | Plug to Plug | SMC to SMC | Female to Female |

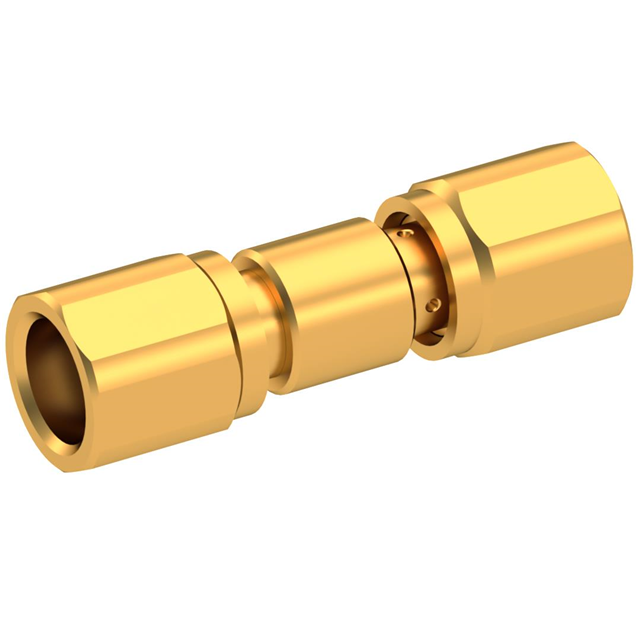

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Brass | Brass | -65 ░C | 165 °C | Gold | Straight | Gold | Same Series | 50 Ohms | SMC Jack Male Pin | 10 GHz | SMC Jack Male Pin | Free Hanging (In-Line) | Jack to Jack | SMC to SMC | Male to Male |
