ASA87 Series

Catalog

CONN PLG HSG FMALE 17POS INLINE

Part	Type	Orientation	Features	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Shell Finish	Includes Total Count	Includes	Contact Shape	Mounting Type	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Housing Color	Shielding	Connector Type	Shell Material	Note

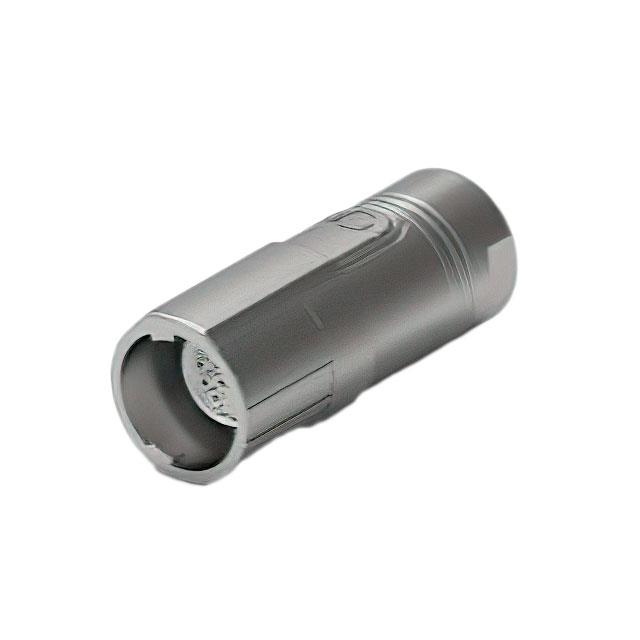

TE Intercontec ASA876N0085050A000	For Female Sockets	Keyed	Backshell Cable Clamp Coupling Nut	17	-20 °C	130 °C	UL94 V-0	Nickel	3 pcs	Backshell Cable Clamp Connector	Circular	Free Hanging (In-Line)	PBT Polybutylene Terephthalate	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Silver	Shielded	Plug Housing	Zinc Die Cast	Contacts Not Included

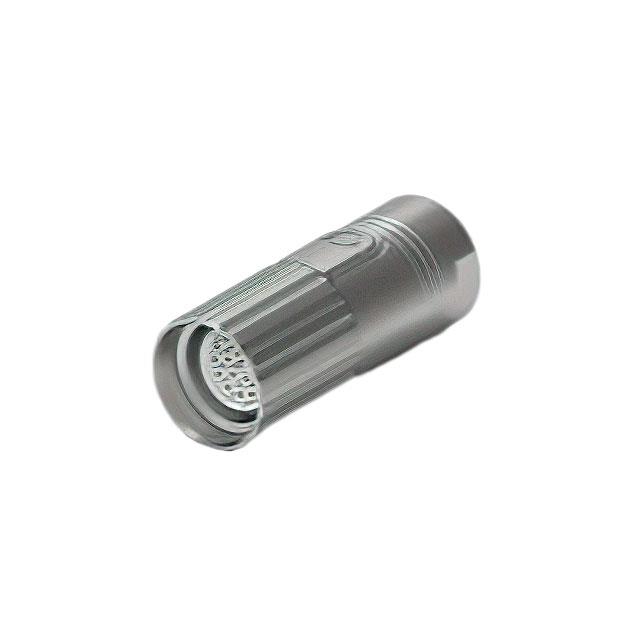

TE Intercontec ASA876N0085200A000	For Female Sockets	Keyed	Backshell Cable Clamp Coupling Nut	17	-20 °C	130 °C	UL94 V-0	Nickel	3 pcs	Backshell Cable Clamp Connector	Circular	Free Hanging (In-Line)	PBT Polybutylene Terephthalate	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Silver	Shielded	Plug Housing	Zinc Die Cast	Contacts Not Included
TE Intercontec ASA876N0086050A000	For Female Sockets	Keyed	Backshell Cable Clamp Coupling Nut	17	-20 °C	130 °C	UL94 V-0	Nickel	3 pcs	Backshell Cable Clamp Connector	Circular	Free Hanging (In-Line)	PBT Polybutylene Terephthalate	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Silver	Shielded	Plug Housing	Zinc Die Cast	Contacts Not Included

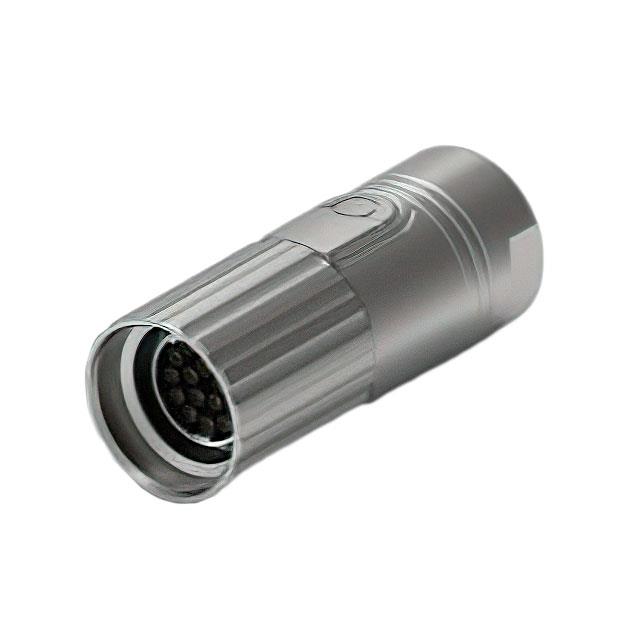

TE Intercontec ASA874N0085200A000	For Female Sockets	Keyed	Backshell Cable Clamp Coupling Nut	17	-20 °C	130 °C	UL94 V-0	Nickel	3 pcs	Backshell Cable Clamp Connector	Circular	Free Hanging (In-Line)	PBT Polybutylene Terephthalate	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Silver	Shielded	Plug Housing	Zinc Die Cast	Contacts Not Included
TE Intercontec ASA876N0086200A000	For Female Sockets	Keyed	Backshell Cable Clamp Coupling Nut	17	-20 °C	130 °C	UL94 V-0	Nickel	3 pcs	Backshell Cable Clamp Connector	Circular	Free Hanging (In-Line)	PBT Polybutylene Terephthalate	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Silver	Shielded	Plug Housing	Zinc Die Cast	Contacts Not Included
TE Intercontec ASA874N0085050A000	For Female Sockets	Keyed	Backshell Cable Clamp Coupling Nut	17	-20 °C	130 °C	UL94 V-0	Nickel	3 pcs	Backshell Cable Clamp Connector	Circular	Free Hanging (In-Line)	PBT Polybutylene Terephthalate	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Silver	Shielded	Plug Housing	Zinc Die Cast	Contacts Not Included
