160927 Series

Catalog

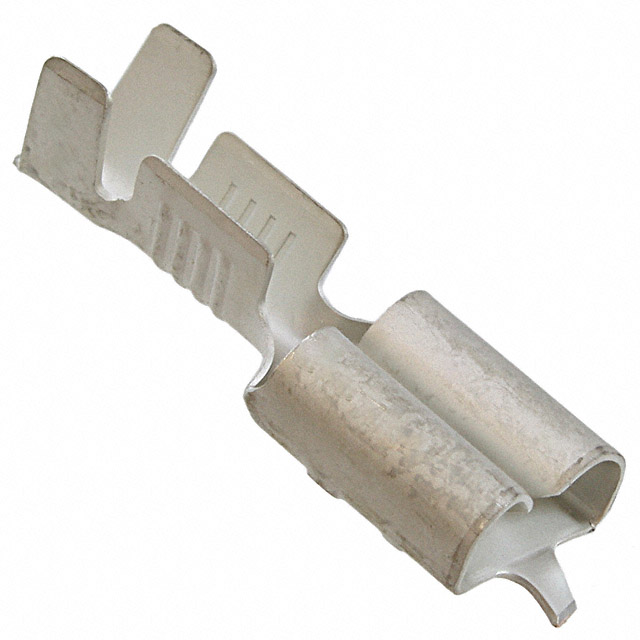

FASTIN-FASTON RECEP 6,35 ROHS COMPLIANT: YES

Part	Terminal Type	Tab Thickness	Tab Thickness	Contact Finish	Termination	Gender	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Tab Width	Tab Width	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Mounting Type	Length - Overall [x]	Length - Overall [x]
TE Connectivity Raychem Cable Protection 160927-2	Standard	0.032 in	0.81 mm	Tin	Crimp	Female	Non-Insulated	14 AWG	17 AWG	Brass	6.35 mm	0.25 in	0.122 "	2.11 mm	3.1 mm	0.083 "	Free Hanging (In-Line)	0.756 in	19.2 mm
