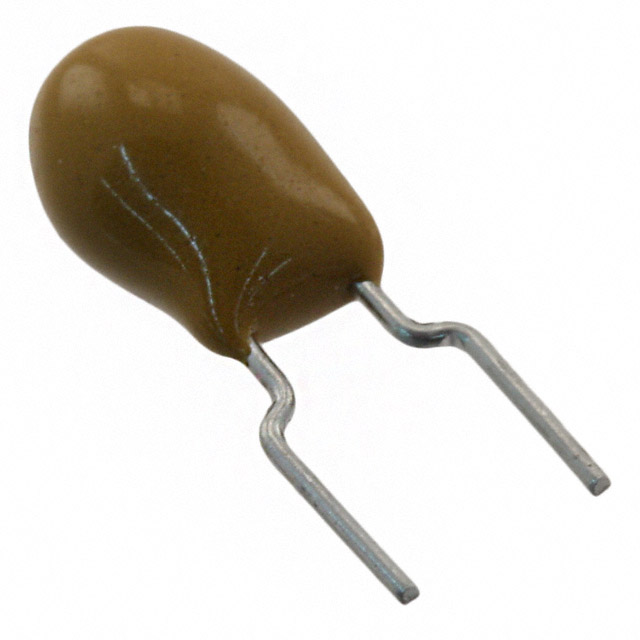

T356G Series

Manufacturer: KEMET

Catalog

CAP TANT 10UF 20% 35V RADIAL

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Manufacturer Size Code	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Features	Capacitance	Voltage - Rated	ESR (Equivalent Series Resistance)
KEMET T356G106M035AT	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	20 %	0.449 in	11.4 mm	General Purpose	10 µF	35 V
KEMET T356G106K035AT	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	10 %	0.449 in	11.4 mm	General Purpose	10 µF	35 V	2 Ohms
KEMET T356G475K050AS	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	10 %	0.449 in	11.4 mm	General Purpose	4.7 µF	50 VDC	2.5 Ohm
KEMET T356G106M035AT7301	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	20 %	0.449 in	11.4 mm	General Purpose	10 µF	35 V
KEMET T356G156K025AS	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	10 %	0.449 in	11.4 mm	General Purpose	15 µF	25 VDC	2 Ohms
KEMET T356G106J035AT	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	5 %	0.449 in	11.4 mm	General Purpose	10 µF	35 V	2000 mOhm
KEMET T356G475K050AT	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	10 %	0.449 in	11.4 mm	General Purpose	4.7 µF	50 VDC	2.5 Ohm
KEMET T356G106K035AT7301	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	10 %	0.449 in	11.4 mm	General Purpose	10 µF	35 V	2 Ohms
KEMET T356G156K025AT	Conformal Coated	-55 C	125 °C	Radial	0.248 "	6.3 mm	Through Hole	G	0.2 in	5.08 mm	10 %	0.449 in	11.4 mm	General Purpose	15 µF	25 VDC	2 Ohms
