ME026 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

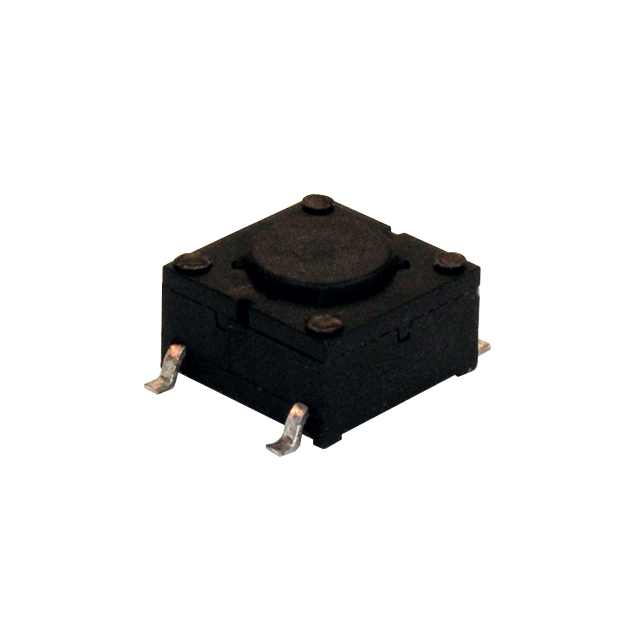

SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Switch Travel | Actuator Material | Termination Style | Actuator Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Mounting Type | Operating Force | Ingress Protection | Outline [x] | Outline [y] | Actuator Orientation | Switch Function | Illumination | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1 mm | Polyamide (PA6T) Nylon 6T | SMD (SMT) Tab | Standard | SPST-NO | 85 °C | -40 C | 0.05 A 24 VDC | Surface Mount | 350 gf | IP67 - Dust Tight Waterproof | 10 mm | 10 mm | Top Actuated | Off-Mom | Non-Illuminated | 6 mm |
