2314843 Series

Catalog

14P,2MM,B-B,REC,DRVT,SMD,SN,TB,W

Part	Insulation Material	Contact Type	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Termination	Connector Type	Insulation Height	Insulation Height	Contact Material	Contact Finish - Post	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Voltage Rating	Insulation Color

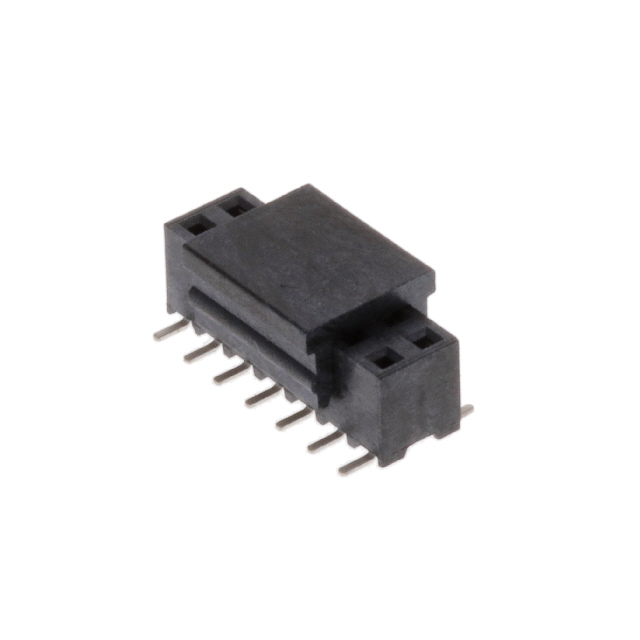

TE Connectivity Raychem Cable Protection 1-2314843-4	Liquid Crystal Polymer (LCP)	Female Socket	UL94 V-0	14	All	Solder	Receptacle Bottom or Top Entry	0.177 in	4.5 mm	Phosphor Bronze	Tin	2 A	Square	118.1 µin	3 µm	0.079 in	2 mm	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Pick and Place	0.3 µm	12 µin	Surface Mount	125 VDC	Black
