MP3202 Series

Catalog

LED DRIVER, 1 OUTPUT, BOOST, 2.5 V TO 6 V INPUT, 1.3 MHZ, 25 V/1.3 A OUTPUT, QFN-8

Part	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency	Topology	Voltage - Output	Current - Output / Channel	Number of Outputs	Voltage - Supply (Min) [Min]	Mounting Type	Dimming	Voltage - Supply (Max) [Max]	Applications

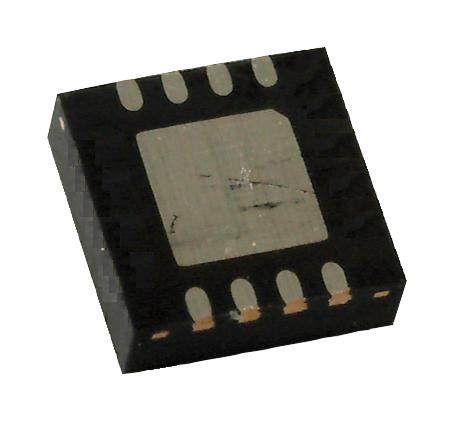

Monolithic Power Systems Inc. MP3202DG-LF-P	8-TFDFN Exposed Pad	8-QFN (2x2)	85 C	-40 ¯C	DC DC Regulator	1.3 MHz	Step-Up (Boost)	25 V	1.33 A	1	2.5 V	Surface Mount	Analog PWM	6 V	Backlight
Monolithic Power Systems Inc. MP3202DJ-LF-P	SOT-23-6 Thin TSOT-23-6	TSOT-23-6	85 C	-40 ¯C	DC DC Regulator	1.3 MHz	Step-Up (Boost)	25 V	1.33 A	1	2.5 V	Surface Mount	Analog PWM	6 V	Backlight
Monolithic Power Systems Inc. MP3202DG-LF-Z	8-TFDFN Exposed Pad	8-QFN (2x2)	85 C	-40 ¯C	DC DC Regulator	1.3 MHz	Step-Up (Boost)	25 V	1.33 A	1	2.5 V	Surface Mount	Analog PWM	6 V	Backlight
Monolithic Power Systems Inc. MP3202DJ-LF-Z	SOT-23-6 Thin TSOT-23-6	TSOT-23-6	85 C	-40 ¯C	DC DC Regulator	1.3 MHz	Step-Up (Boost)	25 V	1.33 A	1	2.5 V	Surface Mount	Analog PWM	6 V	Backlight
