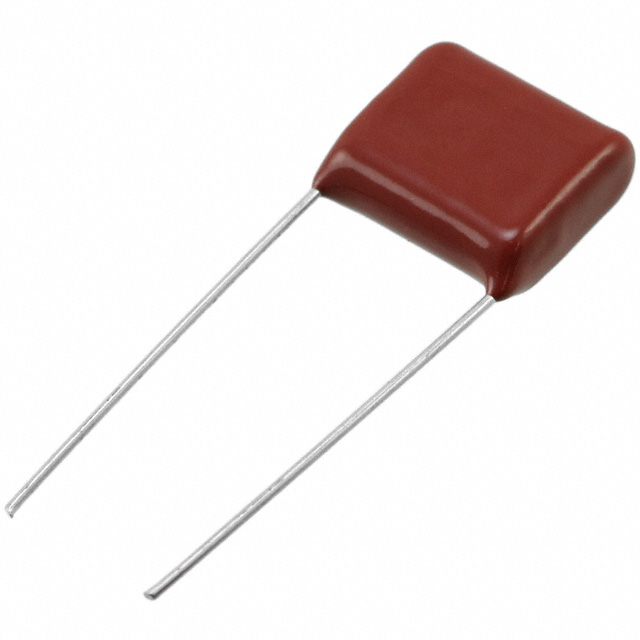

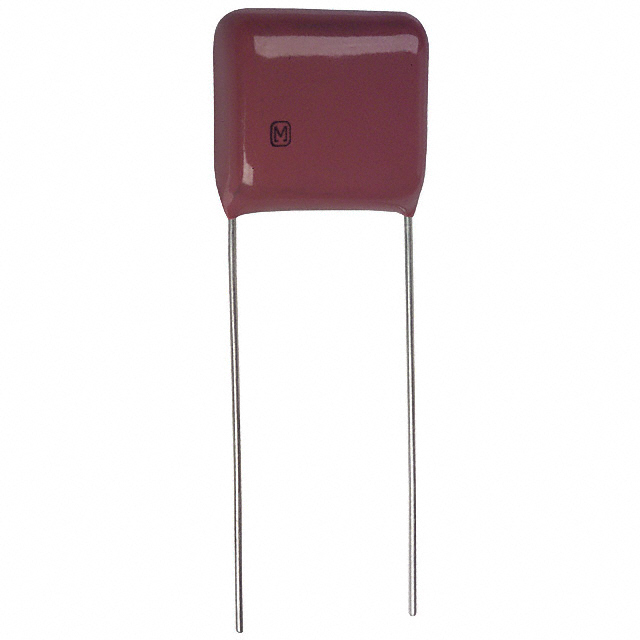

ECQ-E2125 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 1.2UF 10% 250VDC RADIAL

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Dielectric Material	Capacitance	Tolerance	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination	Mounting Type	Package / Case	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Lead Spacing
Panasonic Electronic Components ECQ-E2125RKF	15 mm	0.591 in	-40 C	105 ░C	20.9 mm	0.823 in	Polyester Metallized	1.2 µF	10 %	General Purpose	0.315 in	8 mm	18.5 mm	0.728 in	PC Pins	Through Hole	Radial	250 V
Panasonic Electronic Components ECQ-E2125JF	15 mm	0.591 in	-40 C	105 ░C			Polyester Metallized	1.2 µF	5 %	General Purpose	0.315 in	8 mm	18.5 mm	0.728 in	PC Pins	Through Hole	Radial	250 V	0.665 in	16.9 mm
Panasonic Electronic Components ECQ-E2125JB	0.492 in		-40 C	105 ░C			Polyester Metallized	1.2 µF	5 %	General Purpose	0.299 "	7.6 mm	15.3 mm	0.602 "	PC Pins	Through Hole	Radial	250 V	0.614 in		15.6 mm	12.5 mm
Panasonic Electronic Components ECQ-E2125JF3	5 mm	0.197 "	-40 C	105 ░C	20.9 mm	0.823 in	Polyester Metallized	1.2 µF	5 %	General Purpose	0.315 in	8 mm	18.5 mm	0.728 in	PC Pins	Through Hole	Radial	250 V
Panasonic Electronic Components ECQ-E2125KBB	5 mm	0.197 "	-40 C	105 ░C			Polyester Metallized	1.2 µF	10 %	General Purpose	0.299 "	7.6 mm	15.3 mm	0.602 "	PC Pins	Through Hole	Radial	250 V	0.772 in	19.6 mm
Panasonic Electronic Components ECQ-E2125KFW	10 mm	0.394 in	-40 C	105 ░C	20.9 mm	0.823 in	Polyester Metallized	1.2 µF	10 %	General Purpose	0.315 in	8 mm	18.5 mm	0.728 in	PC Pins	Through Hole	Radial	250 V
Panasonic Electronic Components ECQ-E2125JFW	10 mm	0.394 in	-40 C	105 ░C	20.9 mm	0.823 in	Polyester Metallized	1.2 µF	5 %	General Purpose	0.315 in	8 mm	18.5 mm	0.728 in	PC Pins	Through Hole	Radial	250 V
Panasonic Electronic Components ECQ-E2125JBB	5 mm	0.197 "	-40 C	105 ░C			Polyester Metallized	1.2 µF	5 %	General Purpose	0.299 "	7.6 mm	15.3 mm	0.602 "	PC Pins	Through Hole	Radial	250 V	0.772 in	19.6 mm
