746 Series
Manufacturer: EDAC Inc.
Beta
⌘K

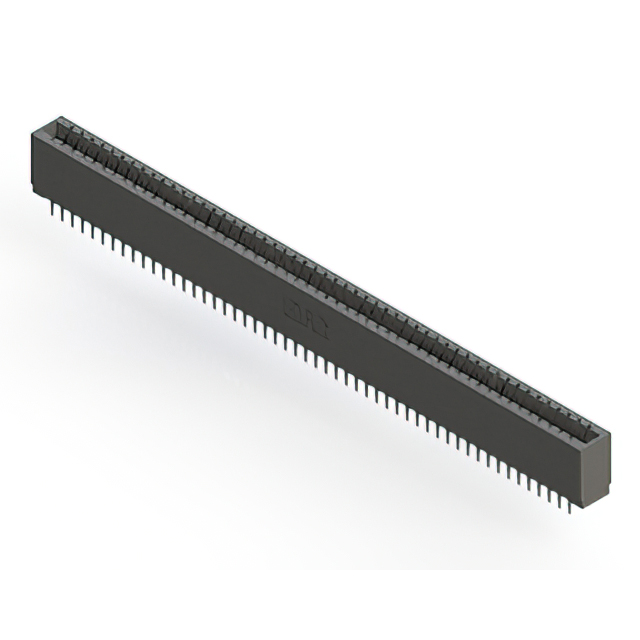

STANDARD CARD EDGE CONNECTORS PRESS-FIT CARD EDGE CONNECTOR
| Part | Number of Positions | Termination | Read Out | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Pitch | Pitch | Mounting Type | Contact Material | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Color | Card Type | Gender | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 118 | Press-Fit | Dual | Cantilever Make Before Break | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 2 | 59 | 30 Áin | 0.76 Ám | Black | Non Specified - Dual Edge | Female | |||||
 EDAC Inc. | 14 | Press-Fit Wire Wrap | Dual | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 2 | 30 Áin | 0.76 Ám | Black | Non Specified - Dual Edge | Female | 2 | Polyester Thermoplastic | 7 | |||
 EDAC Inc. | 42 | Press-Fit Wire Wrap | Dual | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 2 | 21 | 30 Áin | 0.76 Ám | Black | Non Specified - Dual Edge | Female | |||||
 EDAC Inc. | 18 | Press-Fit | Single | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 18 | 30 Áin | 0.76 Ám | Black | Non Specified - Single Edge | Female | Polyester Thermoplastic | 1 | 1 | |||
 EDAC Inc. | 46 | Press-Fit Wire Wrap | Single | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | Black | Non Specified - Single Edge | Female | 46 | 1 | |||||
 EDAC Inc. | 40 | Press-Fit | Dual | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 2 | 30 Áin | 0.76 Ám | Black | Non Specified - Dual Edge | Female | 2 | Polyester Thermoplastic | 20 Bay/Row | |||
 EDAC Inc. | 27 | Press-Fit Wire Wrap | Single | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | Black | Non Specified - Single Edge | Female | Polyester Thermoplastic | 27 | 1 | 1 | |||
 EDAC Inc. | 11 | Press-Fit Wire Wrap | Single | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | Black | Non Specified - Single Edge | Female | Polyester Thermoplastic | 11 | 1 | 1 | |||
 EDAC Inc. | 28 | Press-Fit | Single | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | Black | Non Specified - Single Edge | Female | Polyester Thermoplastic | 28 | 1 | 1 | |||
 EDAC Inc. | 90 | Press-Fit | Dual | Cantilever | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.18 mm | 0.125 in | Through Hole | Copper Alloy | 2 | 30 Áin | 0.76 Ám | Black | Non Specified - Dual Edge | Female | 2 | Polyester Thermoplastic | 45 |
