66506 Series

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Style	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Insulation Color	Shrouding	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Contact Material	Material Flammability Rating	Connector Type	Number of Rows	Fastening Type	Features	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 66506-072LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™	2.67 mm	0.105 in	0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	20	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66506-103	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™	2.67 mm	0.105 in	0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	50	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	15 µin	0.38 µm

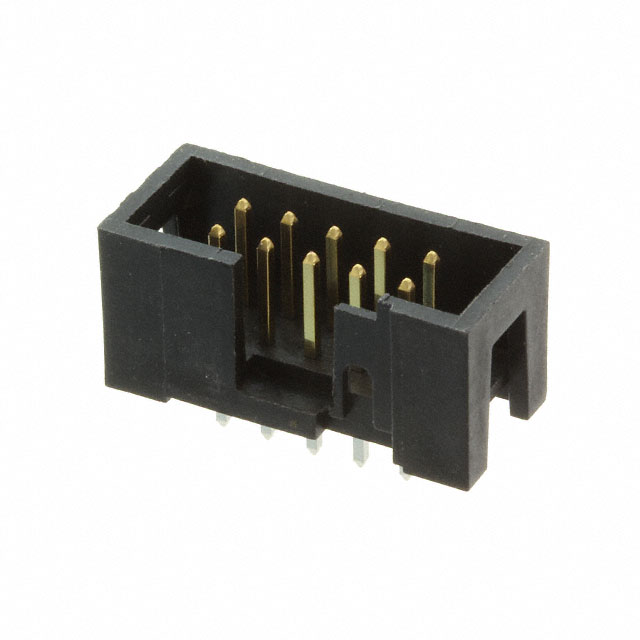

Amphenol ICC (FCI) 66506-066LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™	2.67 mm	0.105 in	0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	10	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66506-013LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™	2.67 mm	0.105 in	0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	26	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66506-056LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™			0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot		Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám	16	0.15 in	3.81 mm
Amphenol ICC (FCI) 66506-026LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™			0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	40	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám		0.15 in	3.81 mm
Amphenol ICC (FCI) 66506-320	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™	2.67 mm	0.105 in	0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot		Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám	16

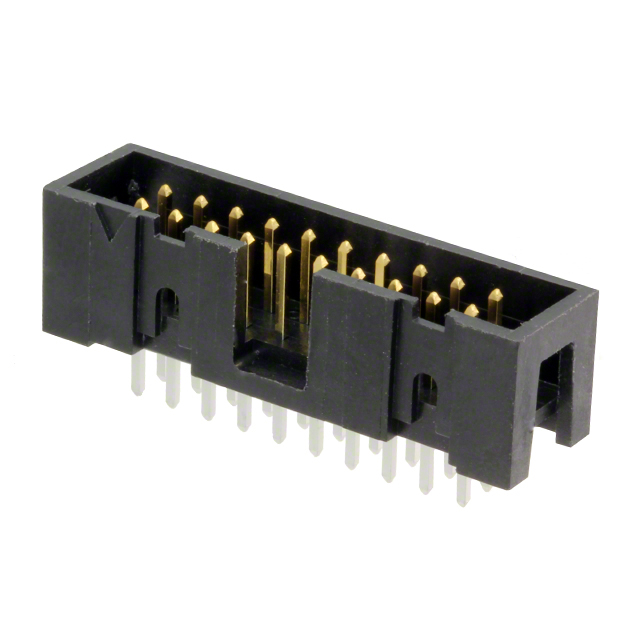

Amphenol ICC (FCI) 66506-008LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™			0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	20	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám		0.15 in	3.81 mm
Amphenol ICC (FCI) 66506-025	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™	2.67 mm	0.105 in	0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	40	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám
Amphenol ICC (FCI) 66506-246LF	Board to Cable/Wire	All	2.54 mm	0.1 in	Male Pin	Black	Shrouded - 4 Wall	Gold or Gold GXT™			0.365 in	9.27 mm	Square	Through Hole	Phosphor Bronze	UL94 V-0	Header	2	Push-Pull	Keying Slot	44	Solder	0.1 in	2.54 mm	Polyester Glass Filled	0.23 in	5.84 mm	30 Áin	0.76 Ám		0.15 in	3.81 mm
