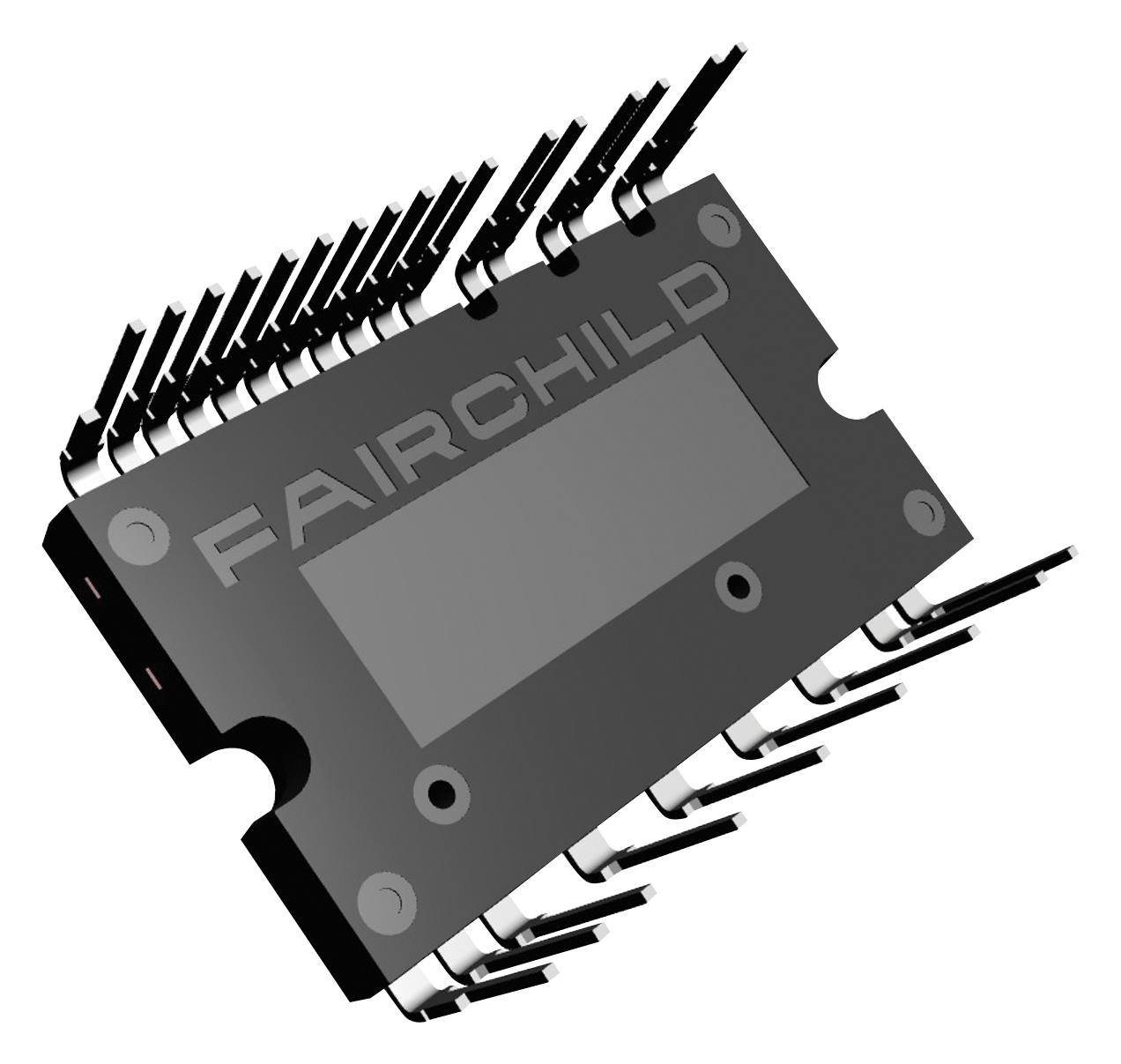

Intelligent Power Module, 600 V, 30A
Key Features
• Low Thermal Resistance Using Ceramic Substrate
• 600 V − 30 A 3−Phase IGBT Inverter with Integral Gate Driversand Protection
• UL Certified No. E209204 (UL1557)
• Low−Loss, Short−Circuit Rated IGBTs
• Built−In Bootstrap Diodes and Dedicated Vs Pins SimplifyPCB Layout
• Built−In NTC Thermistor for Temperature Monitoring
• Separate Open−Emitter Pins from Low−Side IGBTs forThree−Phase Current Sensing
• Single−Grounded Power Supply
• Isolation Rating: 2000 Vrms/ min.
Description
AI
FNB43060T2 is an advanced Motion SPM 45 module providing a fully−featured, high−performance inverter output stage for AC Induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the built−in IGBTs to minimize EMI and losses, while also providing multiple on−module protection features including under−voltage lockouts, over−current shutdown, thermal monitoring of drive IC, and fault reporting. The built−in, high−speed HVIC requires only a single supply voltage and translates the incoming logic−level gate inputs to the high−voltage, high−current drive signals required to properly drive the module’s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.
