MAX5258 Series

Catalog

IC DAC 8BIT V-OUT 16QSOP

Part	Mounting Type	Reference Type	Architecture	Voltage - Supply, Digital [custom]	INL/DNL (LSB)	Settling Time	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits	Data Interface	Number of D/A Converters	Package / Case	Package / Case [x]	Package / Case [y]	Output Type	Supplier Device Package	Voltage - Supply, Analog	Supplied Contents	Contents	Number of DAC's	DAC Type	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX5258EEE	Surface Mount	External	String DAC	5 V	0.05 LSB 0.1 LSB	10 µs	85 °C	-40 C	8	SPI	8	16-SSOP	0.154 in	3.9 mm	Voltage - Buffered	16-QSOP	5 V
Analog Devices Inc./Maxim Integrated MAX5258EEE+T	Surface Mount	External	String DAC	5 V	0.05 LSB 0.1 LSB	10 µs	85 °C	-40 C	8	SPI	8	16-SSOP	0.154 in	3.9 mm	Voltage - Buffered	16-QSOP	5 V

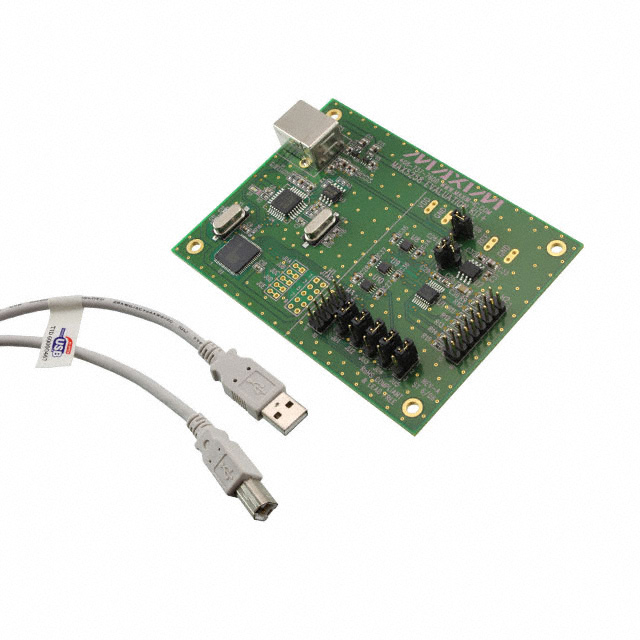

Analog Devices Inc./Maxim Integrated MAX5258EVKIT+						10 µs			8	Serial								Board(s) Cable(s)	Board Cable	8	Voltage	MAX5258
Analog Devices Inc./Maxim Integrated MAX5258EEE+	Surface Mount	External	String DAC	5 V	0.05 LSB 0.1 LSB	10 µs	85 °C	-40 C	8	SPI	8	16-SSOP	0.154 in	3.9 mm	Voltage - Buffered	16-QSOP	5 V
