160928 Series

Catalog

CONN QC RCPT 17-20AWG 0.250

Part	Gender	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Tab Thickness	Tab Thickness	Contact Finish	Termination	Terminal Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Tab Width	Tab Width	Tab Length	Tab Length

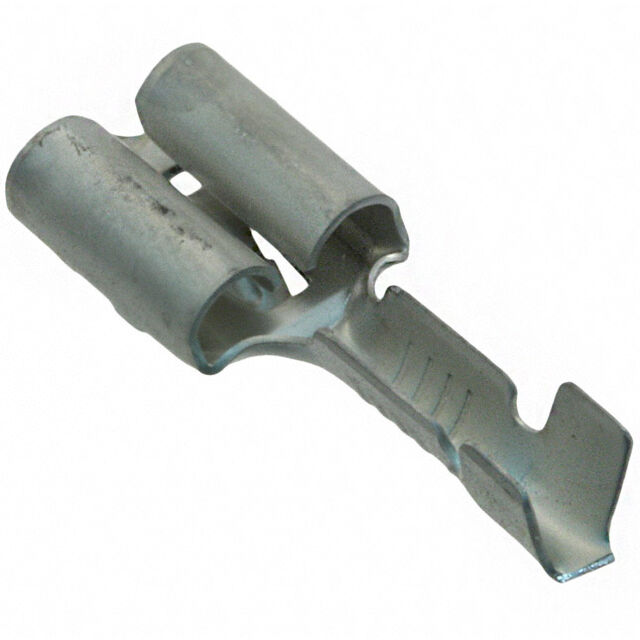

TE Connectivity Raychem Cable Protection 160928-4	Female	0.756 in	19.2 mm	Phosphor Bronze	Non-Insulated	0.032 in	0.81 mm	Tin	Crimp	Standard	0.055 " 1.4 mm	0.091 " 2.31 mm	17 AWG	20 AWG	Free Hanging (In-Line)	6.35 mm	0.25 in	7.75 mm	0.305 in
TE Connectivity Raychem Cable Protection 160928-3	Female	0.756 in	19.2 mm	Phosphor Bronze	Non-Insulated	0.032 in	0.81 mm		Crimp	Standard	0.055 " 1.4 mm	0.091 " 2.31 mm	17 AWG	20 AWG	Free Hanging (In-Line)	6.35 mm	0.25 in	7.75 mm	0.305 in
