2385343 Series

Catalog

1.35MM FEMALE TO 1.35MM FEMALE A

Part	Adapter Series [Min]	Adapter Series [Max]	Adapter Type	Body Material	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Center Contact Material	Conversion Type	Convert From (Adapter End)	Mounting Type	Impedance	Mating Cycles	Center Contact Plating	Center Gender	Style	Dielectric Material

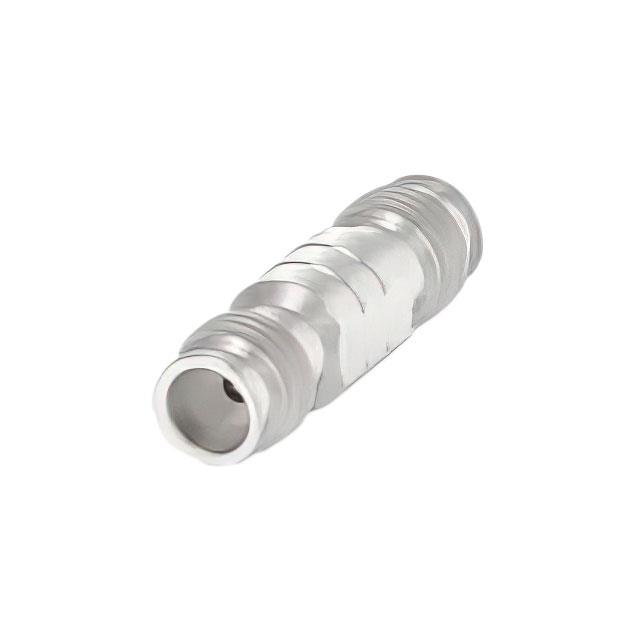

TE Connectivity Raychem Cable Protection 2385343-1	1.35 mm	1.35 mm	Jack to Jack	Stainless Steel	1.35mm Jack Female Socket	85 °C	-40 °C	90 GHz	Beryllium Copper	Same Series	1.35mm Jack Female Socket	Free Hanging (In-Line)	50 Ohms	500	Gold	Female to Female	Straight	Polyetheretherketone (PEEK)
