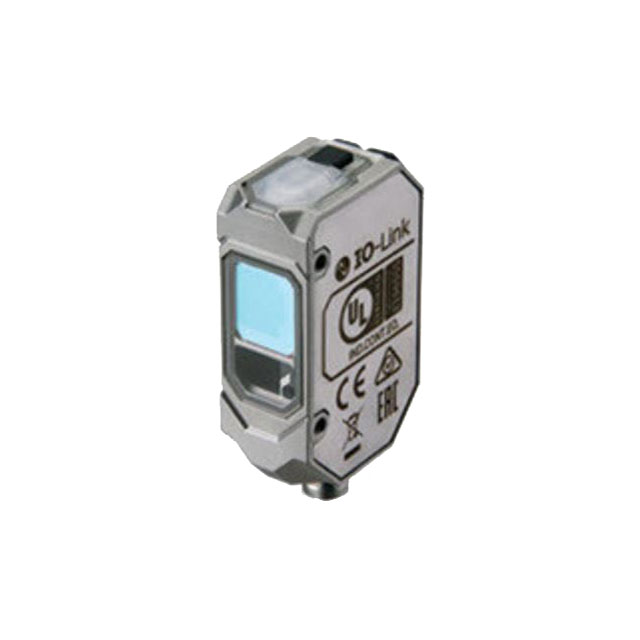

E3AS-HL500 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

PHOTOELECTRIC SENSOR; CMOS; 3-WI

Part	Sensing Method	Connection Method	Sensing Distance [Max]	Sensing Distance [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Light Source	Cable Length	Cable Length	Output Configuration	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Adjustment Type	Ingress Protection
Omron Electronics Inc-EMC Div E3AS-HL500LMT M3	Triangulation	Connector M8	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	11.81 in	30 cm	PNP-NC/NO	-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500LMT-M3J 0.3M	Triangulation	Cable with Connector M12	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	11.81 in	30 cm	PNP-NC/NO	-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500LMT-M1TJ 0.3M	Triangulation	Cable with Connector M12	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	11.81 in	30 cm	PNP-NC/NO	-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500MD-M3J 0.3M	Triangulation	Cable with Connector M12	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	11.81 in	30 cm		-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500LMN 5M	Triangulation	Wire	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	196.85 in	5 m	NPN-NC/NO	-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500LMD 5M	Triangulation	Wire	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	196.85 in	5 m		-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500MT-M1TJ 0.3M	Triangulation	Cable with Connector M12	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	11.81 in	30 cm	PNP-NC/NO	-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500MD 2M	Triangulation	Wire	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	78.74 in	2 m		-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500MD-M1TJ 0.3M	Triangulation	Cable with Connector M12	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	11.81 in	30 cm		-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
Omron Electronics Inc-EMC Div E3AS-HL500LMN 2M	Triangulation	Wire	19.685 in 500 mm	1.378 in 35 mm	30 VDC	10 VDC	1.5 ms 10 ms 50 ms	Red Laser Diode (660nm)	78.74 in	2 m	NPN-NC/NO	-10 °C	50 °C	Teaching Method	IP67 IP67G IP69K
