PREC001 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

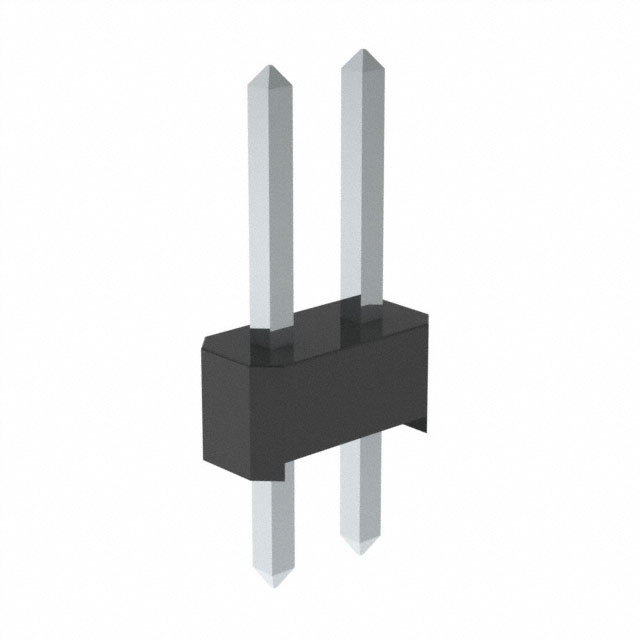

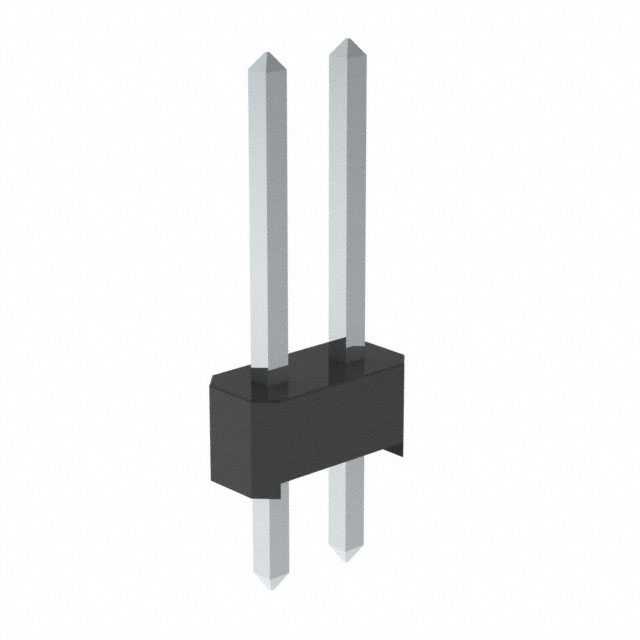

CONN HEADER VERT 2POS
| Part | Current Rating (Amps) | Contact Shape | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Style | Overall Contact Length | Overall Contact Length | Shrouding | Number of Rows [custom] | Fastening Type | Contact Length - Mating | Contact Length - Mating | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Contact Material | Material Flammability Rating | Mounting Type | Insulation Color | Number of Positions | Connector Type | Contact Finish - Post | Number of Rows | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 3 A | Square | All | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 3.05 mm | 0.12 in | Board to Board Cable | 0.448 in | 11.39 mm | Unshrouded | 2 | Push-Pull | 0.23 in | 5.84 mm | Male Pin | 0.1 in | 2.54 mm | Solder | Brass | UL94 V-0 | Through Hole | Black | 2 | Header Breakaway | Tin | |||
 Sullins Connector Solutions | 3 A | Square | All | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 3.05 mm | 0.12 in | Board to Board Cable | 0.448 in | 11.39 mm | Unshrouded | Push-Pull | 0.23 in | 5.84 mm | Male Pin | Solder | Brass | UL94 V-0 | Through Hole | Black | 1 | Header Breakaway | Tin | 1 | |||||
 Sullins Connector Solutions | 3 A | Square | All | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 5.84 mm | 0.23 " | Board to Board Cable | 0.558 in | 14.18 mm | Unshrouded | Push-Pull | 0.23 in | 5.84 mm | Male Pin | Solder | Brass | UL94 V-0 | Through Hole | Black | 1 | Header Breakaway | Tin | 1 | |||||
 Sullins Connector Solutions | 3 A | Square | All | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 3.05 mm | 0.12 in | Board to Board Cable | Unshrouded | Push-Pull | 0.23 in | 5.84 mm | Male Pin | Solder | Brass | UL94 V-0 | Right Angle Through Hole | Black | 1 | Header Breakaway | Tin | 1 | |||||||
 Sullins Connector Solutions | 3 A | Square | All | 0.098 " | 2.5 mm | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | 3.05 mm | 0.12 in | Board to Board Cable | Unshrouded | 2 | Push-Pull | 0.318 in | 8.08 mm | Male Pin | 0.1 in | 2.54 mm | Solder | Brass | UL94 V-0 | Through Hole | Black | 2 | Header Breakaway | Tin | 13.63 mm | 0.537 in |
