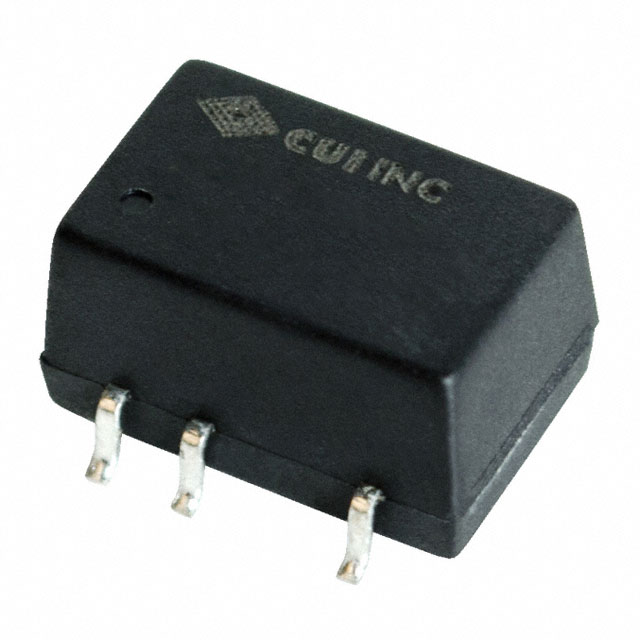

PDS2-S12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 2W

Part	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Input (Min) [Min]	Package / Case	Efficiency	Voltage - Input (Max) [Max]	Voltage - Isolation	Mounting Type	Number of Outputs	Type	Approval Agency	Power (Watts)	Applications	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]
CUI Inc. PDS2-S12-S5-M-TR	400 mA	5 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	SCP	10.8 V	8-SMD Module 5 Leads	79 %	13.2 V	1.5 kV	Surface Mount	1	Isolated Module	EN	2 W	ITE (Commercial)	55024 55032	105 C	-40 °C
CUI Inc. PDS2-S12-S15-M-TR	133 mA	15 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	SCP	10.8 V	8-SMD Module 5 Leads	83 %	13.2 V	1.5 kV	Surface Mount	1	Isolated Module	EN	2 W	ITE (Commercial)	55024 55032	105 C	-40 °C
CUI Inc. PDS2-S12-S15-M	133 mA	15 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	SCP	10.8 V	8-SMD Module 5 Leads	83 %	13.2 V	1.5 kV	Surface Mount	1	Isolated Module	EN	2 W	ITE (Commercial)	55024 55032	105 C	-40 °C
CUI Inc. PDS2-S12-S12-M-TR	167 mA	12 V	12.7 mm	7.3 mm	8.3 mm	12.7 mm	0.33 in	0.29 "	SCP	10.8 V	8-SMD Module 5 Leads		13.2 V	1.5 kV	Surface Mount	1	Isolated Module	EN	2 W	ITE (Commercial)	55024 55032	105 C	-40 °C
