SFW5S Series

Catalog

CONN FPC VERT 5POS 1MM SMD

Part	Mating Cycles	Housing Color	FFC, FCB Thickness	Connector/Contact Type	Number of Positions	Pitch	Pitch	Contact Finish	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Voltage Rating	Termination	Contact Material	Housing Material	Material Flammability Rating	Actuator Color	Cable End Type	Locking Feature
Amphenol ICC (FCI) SFW5S-2STAE1LF	20	Brown	0.33 mm	Contacts Vertical - 1 Sided	5	1 mm	0.039 in	Gold	Thermoplastic Glass Filled	-55 C	85 °C	Surface Mount	0.209 in	5.3 mm	FPC	100 V	Solder	Phosphor Bronze	Glass Filled Thermoplastic	UL94 V-0
Amphenol ICC (FCI) SFW5S-6STE1LF	10	Brown	0.3 mm	Contacts Vertical - 1 Sided	5	1 mm	0.039 in	Tin	Thermoplastic Glass Filled	-55 C	85 °C	Surface Mount	0.209 in	5.3 mm	CIC	100 V	Solder	Phosphor Bronze	Glass Filled Thermoplastic	UL94 V-0	Black	Tapered	Slide Lock

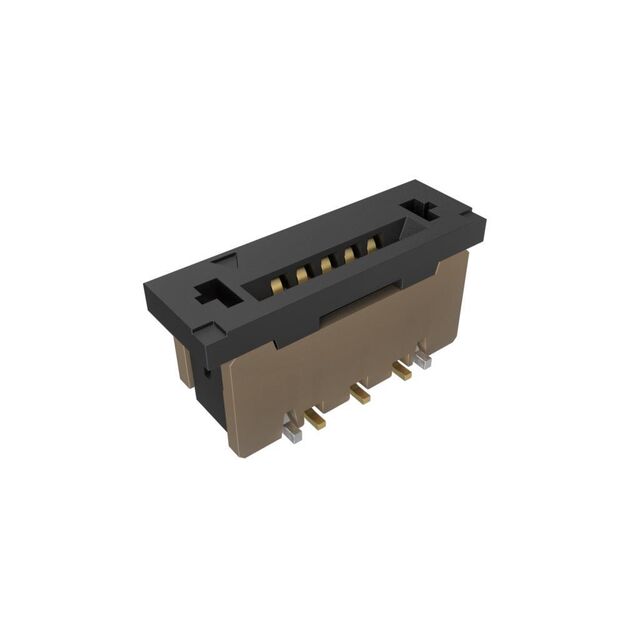

Amphenol ICC (FCI) SFW5S-2STMAE1LF	20	Brown	0.3 mm	Contacts Vertical - 1 Sided	5	1 mm	0.039 in	Gold	Thermoplastic Glass Filled	-55 C	85 °C	Surface Mount	0.209 in	5.3 mm	FPC	100 V	Kinked Pin	Phosphor Bronze	Glass Filled Thermoplastic	UL94 V-0		Straight or Tapered
Amphenol ICC (FCI) SFW5S-2STE1LF	20	Brown	0.33 mm	Contacts Vertical - 1 Sided	5	1 mm	0.039 in	Tin	Thermoplastic Glass Filled	-55 C	105 ░C	Surface Mount	0.209 in	5.3 mm	FFC FPC	100 V	Solder	Phosphor Bronze	Glass Filled Thermoplastic	UL94 V-0			Slide Lock
