Q12AB6 Series

Catalog

WORLD-BEAM Q12 SERIES: FIXED-FIELD

Part	Response Time	Ingress Protection	Sensing Method	Output Configuration	Light Source	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Cable Length	Cable Length
BANNER ENGINEERING Q12AB6FF30Q5	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	30 mm	1.181 in	10 VDC	30 VDC	55 °C	-20 ░C	Connector
BANNER ENGINEERING Q12AB6FF50Q	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	5 cm	1.969 in	10 VDC	30 VDC	55 °C	-20 ░C	Connector
BANNER ENGINEERING Q12AB6FF30Q	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	30 mm	1.181 in	10 VDC	30 VDC	55 °C	-20 ░C	Connector
BANNER ENGINEERING Q12AB6FF50Q5	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	5 cm	1.969 in	10 VDC	30 VDC	55 °C	-20 ░C	Connector
BANNER ENGINEERING Q12AB6LPQ	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Polarized Retroreflective	NPN/PNP - Light-ON	LED	1 m	39.37 in	10 VDC	30 VDC	55 °C	-20 ░C	Connector
BANNER ENGINEERING Q12AB6R	1.3 ms 900 µs	IEC IP67 IP67 IEC	Through-Beam	NPN/PNP - Light-ON	Red LED	2 m	78.74 in	10 VDC	30 VDC	55 °C	-20 ░C	Cable	78.74 "	2 m
BANNER ENGINEERING Q12AB6LP	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Polarized Retroreflective	NPN/PNP - Light-ON	LED	1 m	39.37 in	10 VDC	30 VDC	55 °C	-20 ░C	Cable	78.74 "	2 m

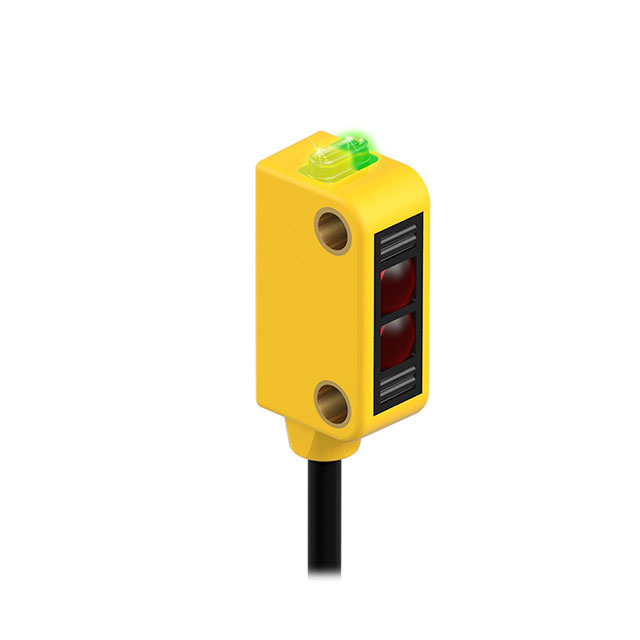

BANNER ENGINEERING Q12AB6FF15	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	15 mm	0.591 in	10 VDC	30 VDC	55 °C	-20 ░C	Cable	78.74 "	2 m
BANNER ENGINEERING Q12AB6FF30	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	30 mm	1.181 in	10 VDC	30 VDC	55 °C	-20 ░C	Cable	78.74 "	2 m
BANNER ENGINEERING Q12AB6FF15Q	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	NPN/PNP - Light-ON	LED	15 mm	0.591 in	10 VDC	30 VDC	55 °C	-20 ░C	Connector
