TR9CZ8421 Series

Catalog

AC/DC DESKTOP ADAPTER 19V 160W

Part	Efficiency	Power (Watts)	Current - Output (Max) [Max]	Form	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Input Connector	Approval Agency	Applications	Output Connector [diameter]	Output Connector	Output Connector [x]	Cord Length	Cord Length	No Load Power Consumption	Input Type	Region Utilized	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Polarization

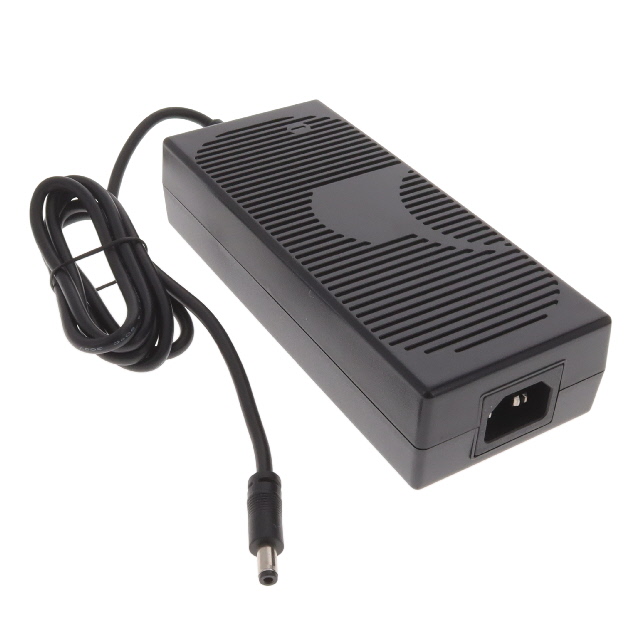

GlobTek, Inc. TR9CZ8421LCPIMR6B	CoC Tier 2 Level VI	160 W	8.42 A	Desktop (Class I)	264 VAC	90 VAC	19 V	40 °C	-10 °C	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C14	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	Household Appliances ITE (Commercial) Medical	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.2 m	47.2 in	150 mW	Cord (Sold Separately)	International	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	Positive Center

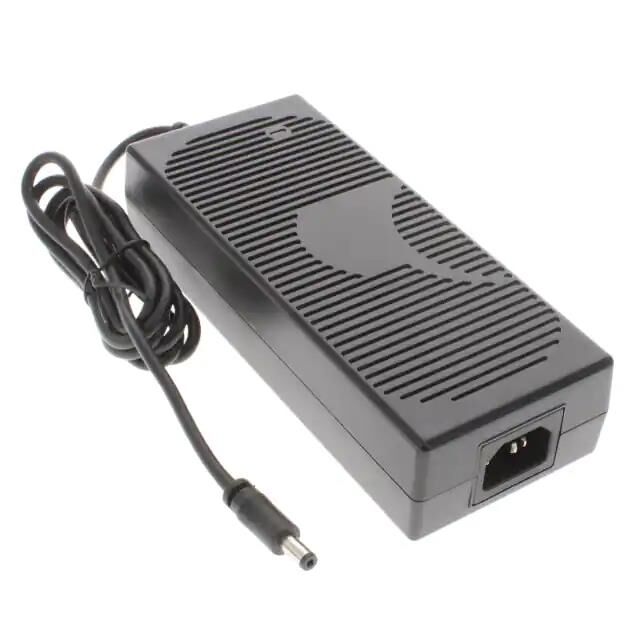

GlobTek, Inc. TR9CZ8421CCPIMR6B	CoC Tier 2 Level VI	160 W	8.42 A	Desktop (Class I)	264 VAC	90 VAC	19 V	40 °C	-10 °C	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C14	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	Household Appliances ITE (Commercial) Medical	2.1 mm 5.5 mm	Barrel Plug	11 mm	1.2 m	47.2 in	150 mW	Cord (Sold Separately)	International	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	Positive Center

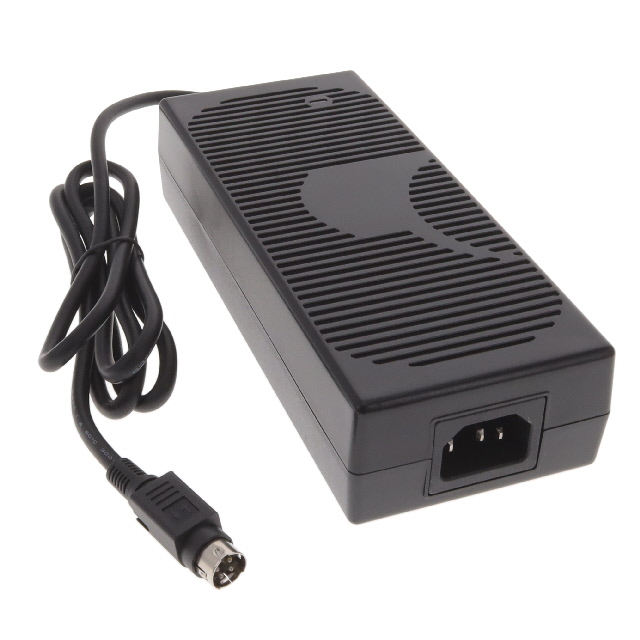

GlobTek, Inc. TR9CZ8421YL4IMR6B	CoC Tier 2 Level VI	160 W	8.42 A	Desktop (Class I)	264 VAC	90 VAC	19 V	40 °C	-10 °C	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C14	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	Household Appliances ITE (Commercial) Medical		Power DIN 4 Pin		1.2 m	47.2 in		Cord (Sold Separately)	International	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in
