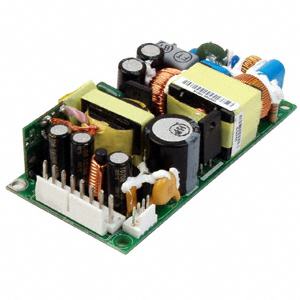

VMS-160 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 90W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Type	Power (Watts)	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Mounting Type	Voltage - Output 1	Approval Agency	Current - Output 1	Features	Current - Output 1 [custom]
CUI Inc. VMS-160-15	0.85 "	21.6 mm	4 "	2 in	50.8 mm	101.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	Open Frame	90 W	120 W	90 %	70 °C	-25 °C	Medical	1	85 VAC 125 VDC	264 VAC 373 VDC	5656 V	Chassis Mount	15 V	CB Scheme EN IEC SIQ TUV UL	6 A	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VMS-160-24	0.85 "	21.6 mm	4 "	2 in	50.8 mm	101.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	Open Frame	100 W 160 W		90 %	70 °C	-25 °C	Medical	1	85 VAC 125 VDC	264 VAC 373 VDC	5656 V	Chassis Mount	24 V	CB Scheme EN IEC SIQ TUV UL	4.17 A	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VMS-160-48	0.85 "	21.6 mm	4 "	2 in	50.8 mm	101.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	Open Frame	100 W 160 W		90 %	70 °C	-25 °C	Medical	1	85 VAC 125 VDC	264 VAC 373 VDC	5656 V	Chassis Mount	48 V	CB Scheme EN IEC SIQ TUV UL	2.08 A	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VMS-160-5	0.85 "	21.6 mm	4 "	2 in	50.8 mm	101.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	Open Frame	70 W 100 W		90 %	70 °C	-25 °C	Medical	1	85 VAC 125 VDC	264 VAC 373 VDC	5656 V	Chassis Mount	5 V	CB Scheme EN IEC SIQ TUV UL		Adjustable Output PFC Standby Output Universal Input	14 A
