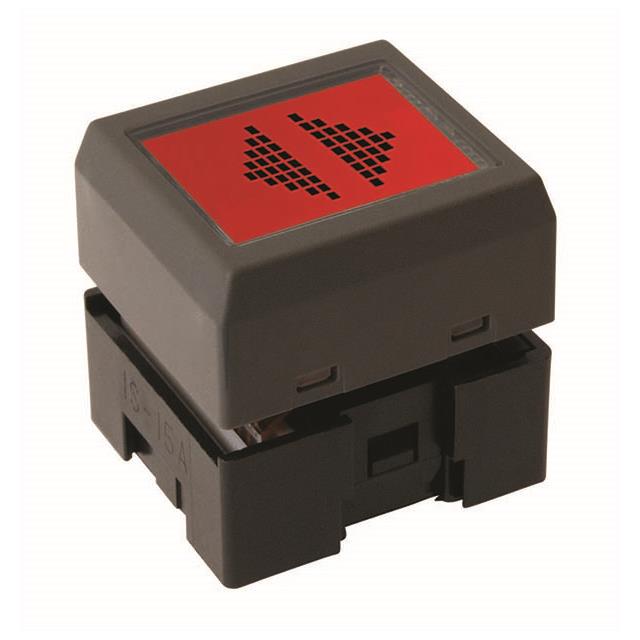

IS15BSAF Series
Manufacturer: NKK Switches
Beta
⌘K
PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, IS SERIES, SPDT, THROUGH HOLE, 100 MA, 12 V, LCD
| Part | Operating Force | Travel Range [Max] | Style | LED Forward Current | LED Forward Voltage | LED Forward Voltage | Termination Style | Type | Display Mode | Mounting Type | Circuit | Switch Function | Supply Voltage [Max] | Supply Voltage [Min] | Contact Rating @ Voltage | Pixel Format [y] | Pixel Format [x] | Operating Temperature [Max] | Operating Temperature [Min] | Viewing Area [x] | Viewing Area [y] | LED Color | Face Size [x] | Face Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 173 gf | 1.8 mm | Compact | 15 mA 15 | 1.9 | 1.9 VDC | PC Pin | LCD Pushbutton | Black and White FSTN Positive | Through Hole | SPST-NO | Off-Mom | 5.5 V | 3 V | 0.1 A 12 VDC | 24 | 36 | 50 °C | -15 °C | 14.5 mm | 11.8 mm | Green Red | 19 mm | 18 mm |
