3277 Series

Catalog

CONN SPADE TERM 16-22AWG #4 RED

Part	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Length - Termination	Length - Termination	Color	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type	Insulation	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Length - Pin [x]	Length - Pin [x]	Pin Diameter [x]	Pin Diameter [y]	Pin Diameter [y]	Pin Diameter [x]	Insulation Diameter [Max] [diameter]	Length - Termination

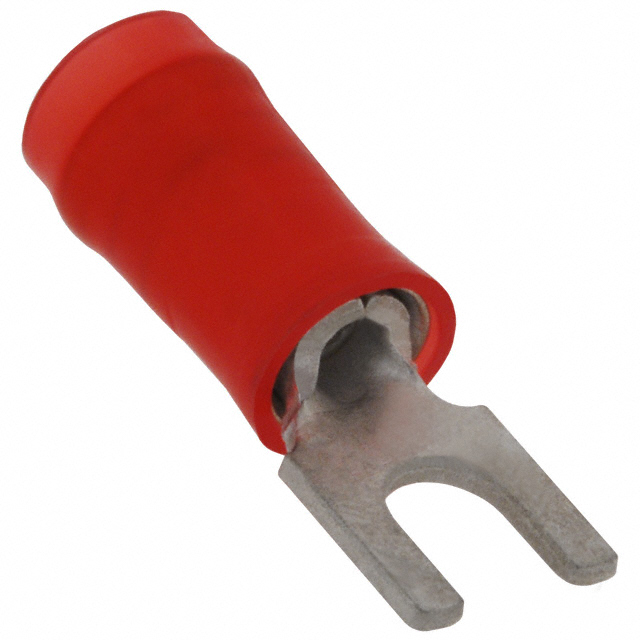

TE Connectivity Raychem Cable Protection 327717	Tin	5.54 mm	0.218 in	Serrated Termination	0.404 "	10.26 mm	Red	3.02 mm	0.119 in	0.14 in	0.105 in	3.56 mm	2.67 mm	Free Hanging (In-Line)	Insulated	4 Stud	22 AWG	16 AWG	Standard	Copper	0.674 "	17.12 mm	Crimp	0.156 in	3.96 mm	Nylon Polyamide (PA)

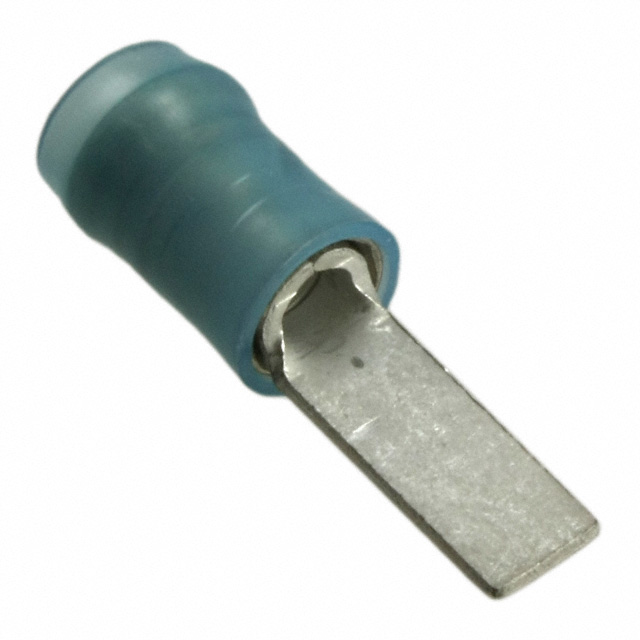

TE Connectivity Raychem Cable Protection 327748	Tin			Serrated Termination			Blue			0.17 " 4.32 mm	0.115 in 2.92 mm				Insulated					Copper	0.809 in	20.55 mm	Crimp			Nylon Polyamide (PA)	9.53 mm	0.375 in	0.156 "	0.8 mm	0.031 in	3.96 mm

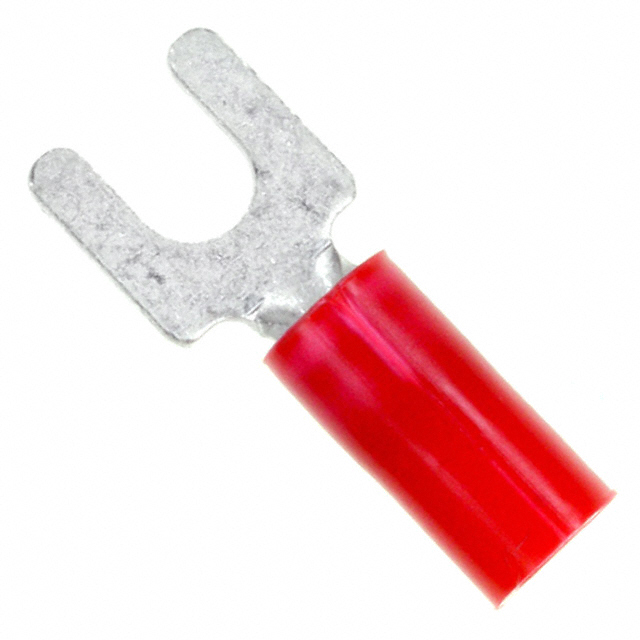

TE Connectivity Raychem Cable Protection 327735	Tin	7.54 mm	0.297 in	Serrated Termination	10.57 mm		Red	3.68 mm	0.145 in	0.125 "	0.08 in		2.03 mm	Free Hanging (In-Line)	Insulated	6 Stud	22 AWG	16 AWG	Standard	Copper	0.765 in	19.43 mm	Crimp	0.203 in	5.16 mm	Poly-Vinyl Chloride (PVC)							3.18 mm	0.416 in
