10083113 Series

Catalog

CONN HEADER VERT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Fastening Type	Mounting Type	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Contact Type	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Insulation Material	Connector Type	Insulation Color	Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length
Amphenol ICC (FCI) 10083113-114LF	40 Áin	1.02 Ám	0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.076 µm	3 µin	14	8.08 mm	0.318 in	0.608 in	15.44 mm

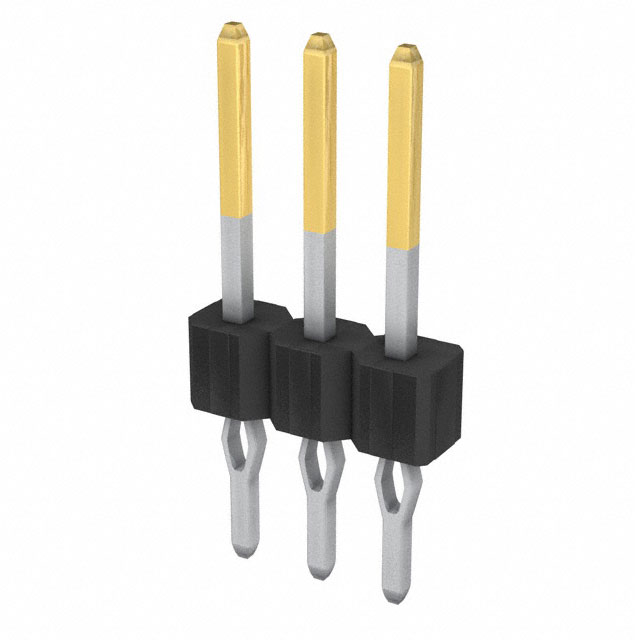

Amphenol ICC (FCI) 10083113-203HLF	40 Áin	1.02 Ám	0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.38 µm	15 µin		8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-108LF			0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.76 Ám	30 Áin	8	8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-203LF			0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.38 µm	15 µin		8.08 mm	0.318 in	0.608 in	15.44 mm

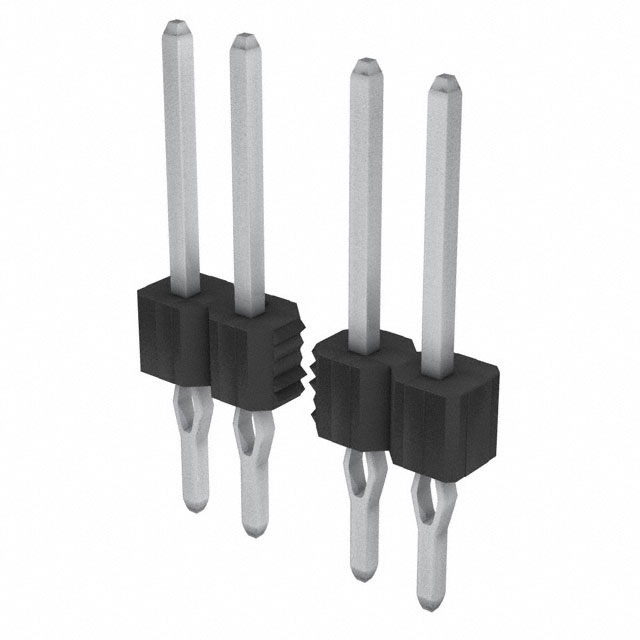

Amphenol ICC (FCI) 10083113-416LF			0.19 in	4.83 mm	Push-Pull	Through Hole		Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	3.05 µm	120 µin	16	8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-116LF			0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.76 Ám	30 Áin	16	8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-120LF			0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.76 Ám	30 Áin	20	8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-136LF			0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.76 Ám	30 Áin	36	8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-216LF			0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All		Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.38 µm	15 µin	16	8.08 mm	0.318 in	0.608 in	15.44 mm
Amphenol ICC (FCI) 10083113-202HLF	40 Áin	1.02 Ám	0.19 in	4.83 mm	Push-Pull	Through Hole	Gold	Phosphor Bronze	3 A	0.1 in	2.54 mm	Unshrouded	Male Pin	Square	Tin	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Header Breakaway	Black	Press-Fit Solder	1	-65 ░C	125 °C	0.1 "	2.54 mm	UL94 V-0	0.38 µm	15 µin	2	8.08 mm	0.318 in	0.608 in	15.44 mm
