KMR441 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Contact Rating @ Voltage	Operating Force	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Switch Function	Outline [x]	Outline [y]	Termination Style	Switch Travel	Illumination	Actuator Orientation	Mechanical Life	Circuit	Features

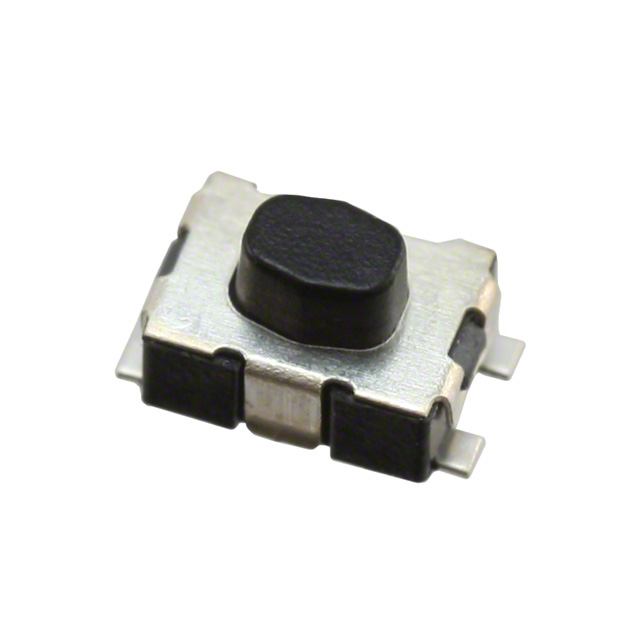

Littelfuse/Commercial Vehicle Products KMR441NG LFS	0.05 A	400 gf	Standard	Surface Mount	85 °C	-40 °C	2.5 mm	Off-Mom	4.6 mm	2.8 mm	Gull Wing	0.35 mm	Non-Illuminated	Top Actuated	100000 Cycles	SPST-NO
Littelfuse/Commercial Vehicle Products KMR441G ULC LFS	0.05 A	400 gf	Standard	Surface Mount	85 °C	-40 °C	2.5 mm	Off-Mom	4.6 mm	2.8 mm	Gull Wing	0.35 mm	Non-Illuminated	Top Actuated	100000 Cycles	SPST-NO	Grounding Pin

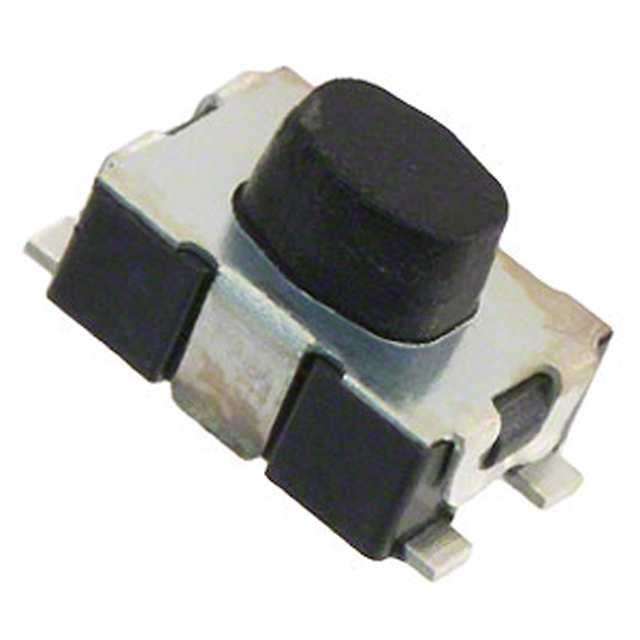

Littelfuse/Commercial Vehicle Products KMR441G LFS	0.05 A	400 gf	Standard	Surface Mount	85 °C	-40 °C	2.5 mm	Off-Mom	4.6 mm	2.8 mm	Gull Wing	0.35 mm	Non-Illuminated	Top Actuated	100000 Cycles	SPST-NO	Grounding Pin
