GRB224A Series
Manufacturer: CW Industries
Beta
⌘K

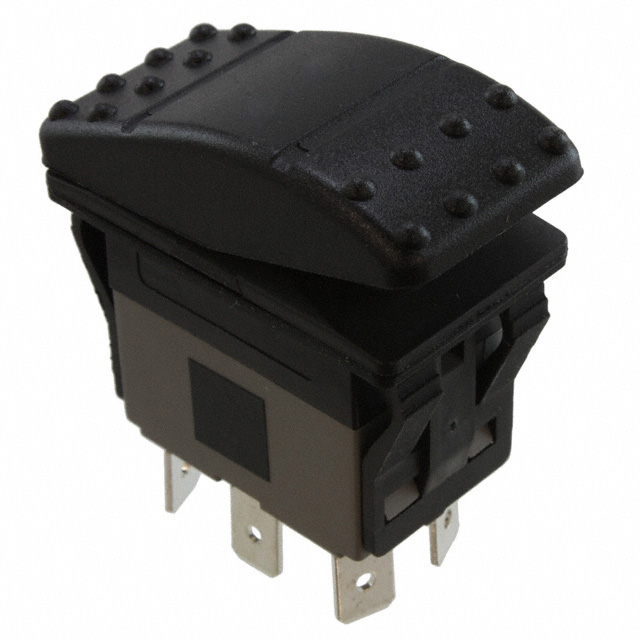

SWITCH ROCKER DPDT 25A 12V
| Part | Electrical Life | Mechanical Life | Termination Style | Ingress Protection | Voltage Rating - DC | Circuit | Switch Function | Actuator Marking | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Actuator Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 30000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | 12 V | DPDT | On-On | No Marking | 25 A | 85 °C | -25 °C | Black | Convex (Reverse V) | 37 mm | 21.1 mm | Panel Mount Snap-In |
