ATH006 Series

Catalog

DC DC CONVERTER 0.8-3.6V 21W

Part	Type	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Control Features	Package / Case	Efficiency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Min) [Min]	Power (Watts)	Applications

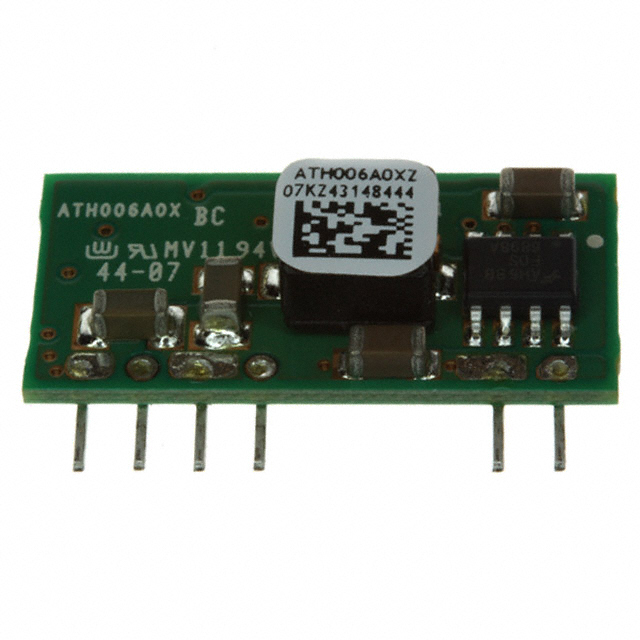

OmniOn Power™ ATH006A0XZ	Non-Isolated PoL Module	5.5 V	Through Hole	12.7 mm	1 in	25.4 mm	6.7 mm	0.5 in	0.26 in	1	Active Low Enable	6-SIP Module	96 %	3.6 V	0.8 V	6 A	85 °C	-40 C	OCP OTP Remote On/Off UVLO	2.4 V	21 W	ITE (Commercial)
OmniOn Power™ ATH006A0XZ	Non-Isolated PoL Module	5.5 V	Through Hole	12.7 mm	1 in	25.4 mm	6.7 mm	0.5 in	0.26 in	1	Active Low Enable	6-SIP Module	96 %	3.6 V	0.8 V	6 A	85 °C	-40 C	OCP OTP Remote On/Off UVLO	2.4 V	21 W	ITE (Commercial)
