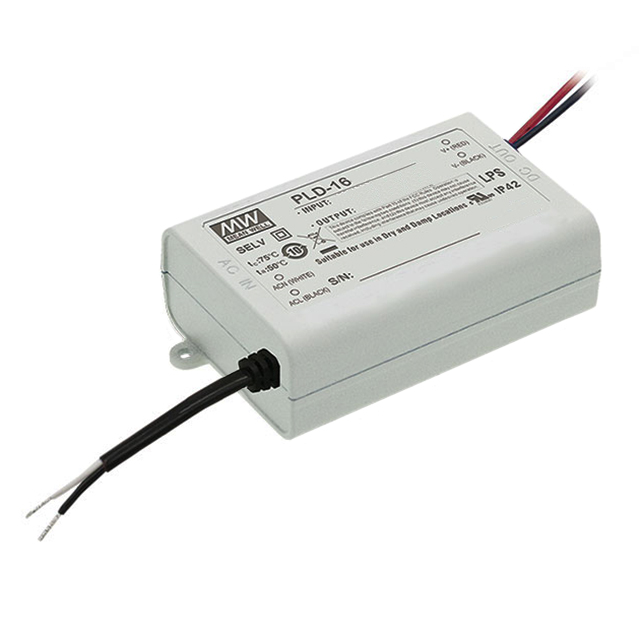

PLD-16 Series

Catalog

LED DRVR CC AC/DC 24-48V 350MA

Part	Mounting Type	Ratings	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Features	Approval Agency	Voltage - Isolation	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Topology	Current - Output (Max) [Max]	Termination Style	Voltage - Input (Min) [Min]
MEAN WELL USA Inc. PLD-16-350B	Chassis Mount	IP42	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	1	48 V	24 V	OTP SCP	CB CE UR	3750 VDC	85.5 %	Constant Current	-30 ░C	50 °C	295 VAC	17 W	AC DC Converter	350 mA	Wire Leads	180 VAC
MEAN WELL USA Inc. PLD-16-1400B	Chassis Mount	IP42	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	1	12 V	8 V	OTP SCP	CB CE cURus	3750 VDC	83.5 %	Constant Current	-30 ░C	50 °C	295 VAC	17 W	AC DC Converter	1.4 A	Wire Leads	180 VAC
MEAN WELL USA Inc. PLD-16-700A	Chassis Mount	IP42	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	1	24 V	16 V	OTP SCP		3750 VDC	84.5 %	Constant Current	-30 ░C	50 °C	135 VAC	17 W	AC DC Converter	700 mA	Wire Leads	90 VAC
MEAN WELL USA Inc. PLD-16-700B	Chassis Mount	IP42	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	1	24 V	16 V	OTP SCP	CB CE cURus	3750 VDC	86 %	Constant Current	-30 ░C	50 °C	295 VAC	17 W	AC DC Converter	700 mA	Wire Leads	180 VAC
MEAN WELL USA Inc. PLD-16-1050B	Chassis Mount	IP42	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	1	16 V	12 V	OTP SCP	CB CE cURus	3750 VDC	85 %	Constant Current	-30 ░C	50 °C	295 VAC	17 W	AC DC Converter	1.05 A	Wire Leads	180 VAC
