OSTTH08 Series

Catalog

TERM BLOCK PLUG 8POS 90DEG 3.5MM

Part	Torque - Screw	Torque - Screw	Wire Strip Length [Min]	Wire Strip Length [Max]	Material Flammability Rating	Housing Material	Contact Material	Number of Positions	Positions Per Level	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Voltage - UL	Termination Style	Number of Levels	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
On Shore Technology Inc. OSTTH082150	1.7 Lb-In	0.2 Nm	5 mm	6 mm	UL94 V-0	Brass	Brass	8	8	3.5 mm	0.138 "	28 AWG	16 AWG	Nickel	300 V	Screw	1	Free Hanging (In-Line)	115 °C	-40 C	Interlocking (Side)	Plug for Unshrouded Header

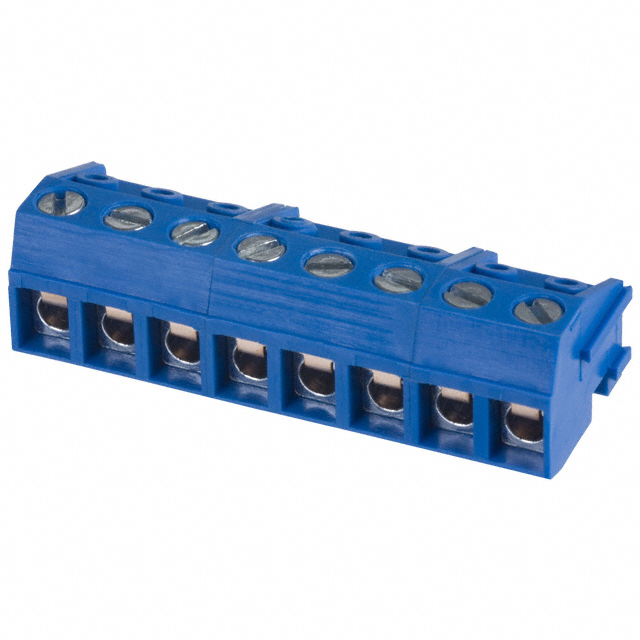

On Shore Technology Inc. OSTTH080160	3.5 Lb-In	0.4 Nm	5 mm	6 mm	UL94 V-0	Brass	Brass	8	8	5 mm	0.197 in	22 AWG	14 AWG	Nickel	300 V	Screw	1	Free Hanging (In-Line)	115 °C	-40 C	Interlocking (Side)	Plug for Unshrouded Header	Blue	0.34 mm²	1.5 mm²
