3RT2026 Series

Manufacturer: Siemens

Catalog

Catalog

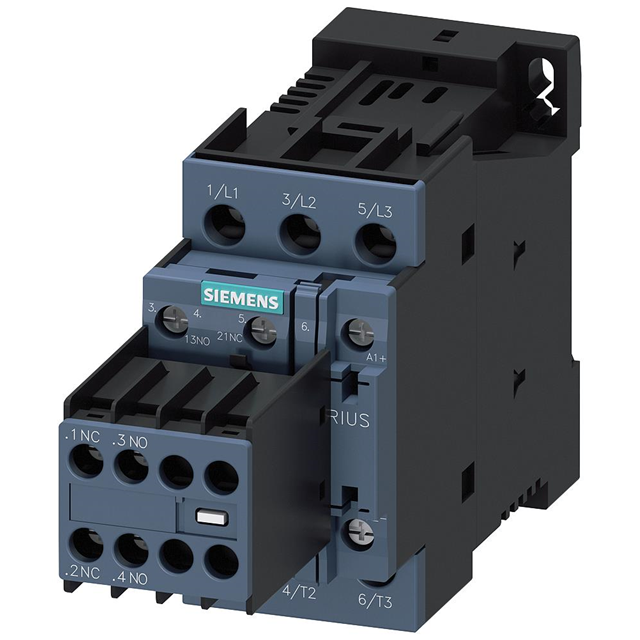

CONTACTOR S0 25A 240VAC 1NO/1NC

...

Part	Release Time	Operate Time	Coil Power	Must Operate Voltage	Mounting Type	Features	Contact Form	Contact Rating (Current)	Coil Voltage	Switching Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RT20264AP60	16 ms	40 ms	79 VA	192 VAC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	240 VAC/DC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261AN60	16 ms	40 ms	79 VA	187 VAC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	220 VAC/DC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261FB443MA0	17.5 ms	170 ms	5.9 W	19.2 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261AG60	16 ms	40 ms	79 VA	93.5 VAC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	110 VAC/DC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261AC24	16 ms	40 ms	79 VA		Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	24 VAC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20262NB30	50 ms	80 ms	5.9 W		Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A		690 VAC	-25 °C	60 °C	Spring Terminal	28 VAC/DC	21 VAC/DC
Siemens 3RT20264VB40	21 ms	270 ms	4.5 W	16.8 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261BE40	17.5 ms	170 ms	5.9 W	48 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	60 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261DB40	17.5 ms	170 ms	5.9 W	19.2 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261BW44	17.5 ms	170 ms	5.9 W	38.4 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	25 A	48 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
