M39249 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

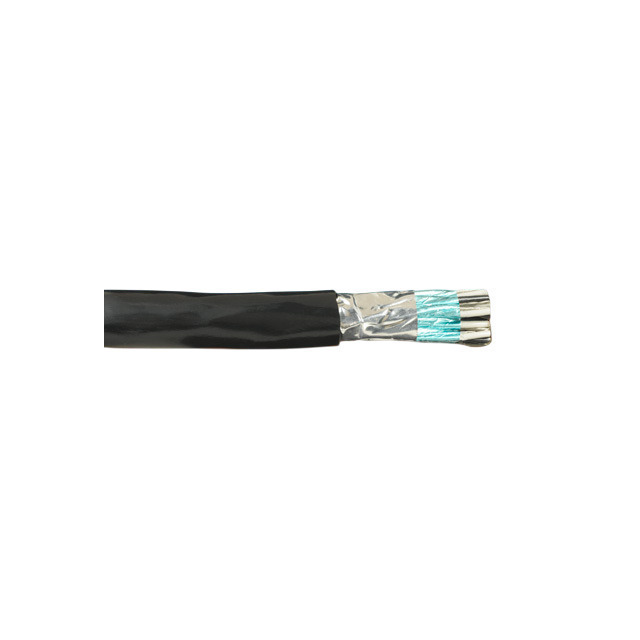

MULTI-PAIR 4COND 24AWG
| Part | Shield Material | Shield Coverage | Cable Type | Voltage | Wire Gauge | Number of Conductors | Jacket Color | Ratings | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Multi-Pair | 300 VDC | 24 AWG | 4 | Slate | UL Style 2493 | 304.8 m | 1000 ft | 0.323 in | 8.2 mm | Foil | Foam Polypropylene (FPP) | -20 ░C | 90 °C | 7 | 32 AWG | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 1.219 mm | 0.048 in | Copper Tinned |
 ALPHA WIRE | Aluminum | 100 % | Multi-Pair | 300 VDC | 24 AWG | 4 | Slate | UL Style 2493 | 152.4 m | 500 ft | 0.323 in | 8.2 mm | Foil | Foam Polypropylene (FPP) | -20 ░C | 90 °C | 7 | 32 AWG | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 1.219 mm | 0.048 in | Copper Tinned |
