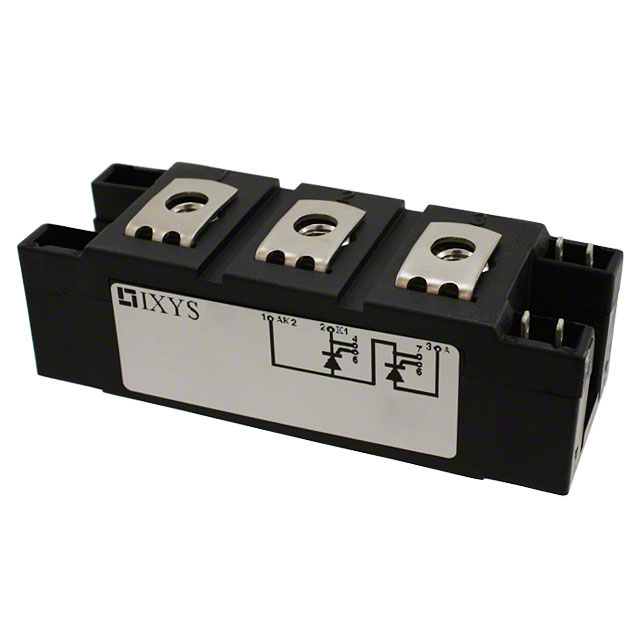

Bipolar Module-Thyristor/Diode Y4-M5/6
Description
AI
The Thyristor-Diode Modules Portfolio offers various packages and breakdown voltages up to 2200V.
Beta
⌘K
Bipolar Module-Thyristor/Diode Y4-M5/6
Bipolar Module-Thyristor/Diode Y4-M5/6
| Part | Number of SCRs, Diodes | Mounting Type | Current - Hold (Ih) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Gate Trigger (Vgt) (Max) [Max] | Voltage - Off State | Current - Non Rep. Surge 50, 60Hz (Itsm) | Package / Case | Structure | Current - On State (It (RMS)) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1 Diode | Chassis Mount | 200 mA | 150 mA | -40 C | 125 °C | 2.5 V | 1.6 kV | 6000 A 6400 A | Y4-M6 | Series Connection - SCR/Diode | 300 A |
 LITTELFUSE | 1 Diode | Chassis Mount | 200 mA | 150 mA | -40 C | 125 °C | 2.5 V | 1.8 kV | 6000 A 6400 A | Y4-M6 | Series Connection - SCR/Diode | 300 A |
 LITTELFUSE | 1 Diode | Chassis Mount | 200 mA | 150 mA | -40 C | 125 °C | 2.5 V | 800 V | 6000 A 6400 A | Y4-M6 | Series Connection - SCR/Diode | 300 A |
