5GTH Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Switch Travel	Mechanical Life	Illumination Type, Color	Actuator Height off PCB, Vertical [z]	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Features	Ingress Protection	Termination Style	Mounting Type	Actuator Type	Operating Force	Actuator Orientation	Illumination	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Actuator Length, Right Angle

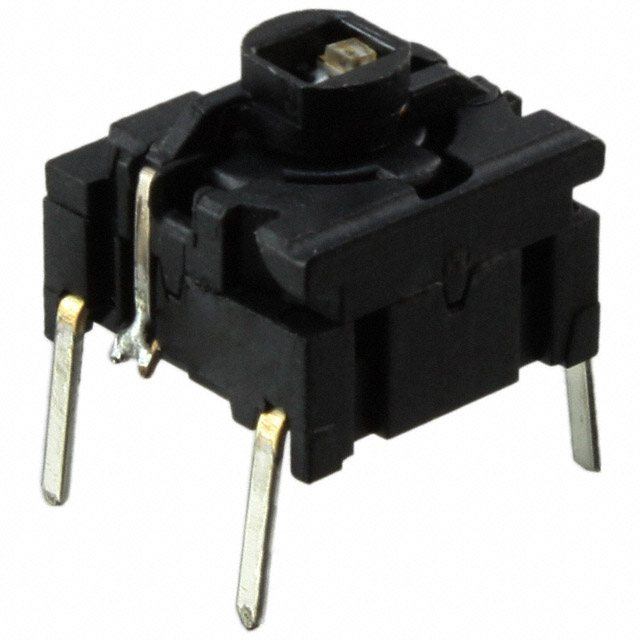

MEC Switches 5GTH93501	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Blue LED	6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Illuminated	0.05 A 24 VDC

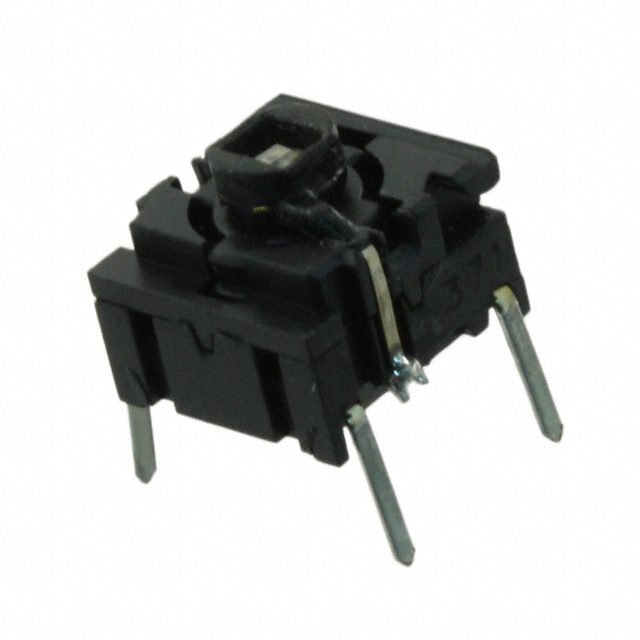

MEC Switches 5GTH93542	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	LED Yellow	6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Illuminated	0.05 A 24 VDC	2 VDC

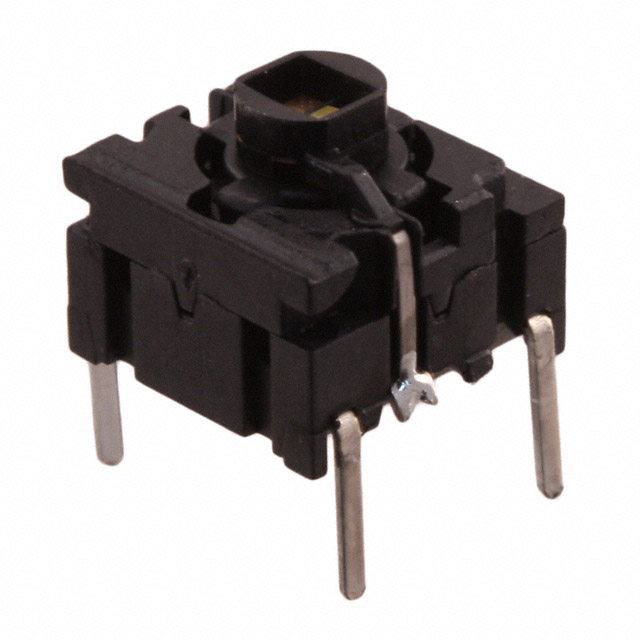

MEC Switches 5GTH93561	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	LED White	6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Illuminated	0.05 A 24 VDC	3.05 VDC

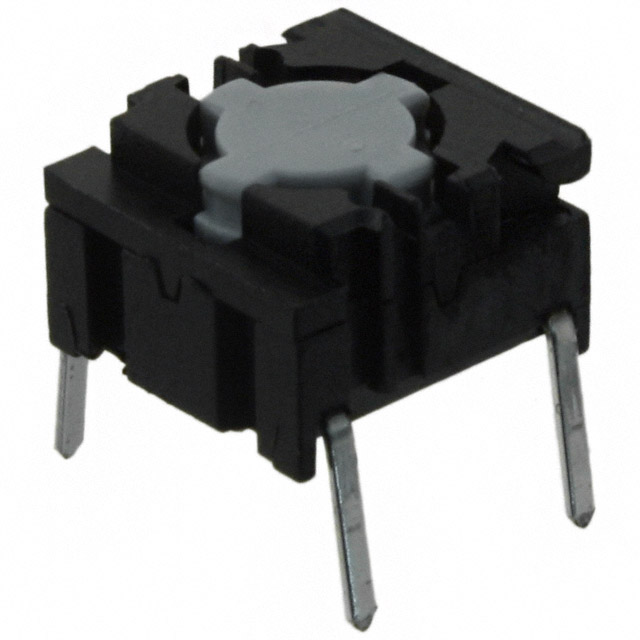

MEC Switches 5GTH920	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles		6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	0.2 kgf	Top Actuated	Non-Illuminated	0.05 A 24 VDC

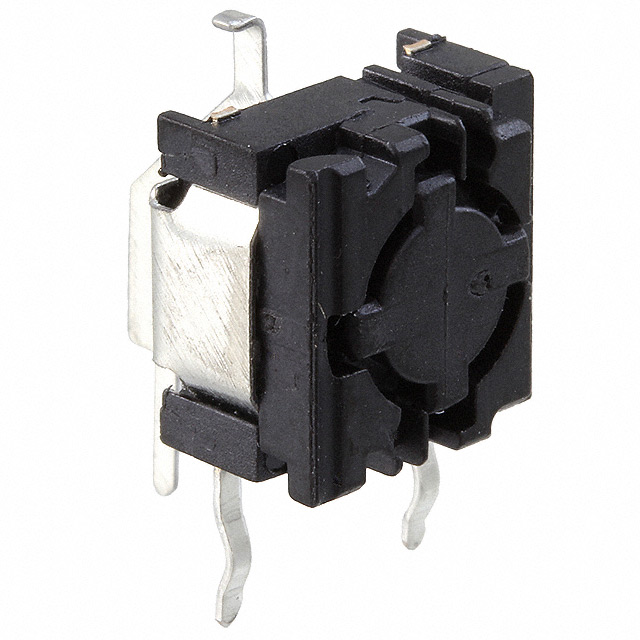

MEC Switches 5GTH935RAS	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles			SPST-NO	Off-Mom	160 °C	-40 C	10 mm	10 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Right Angle Through Hole	Plunger for Cap	350 gf	Side Actuated	Non-Illuminated	0.05 A 24 VDC		4.85 mm

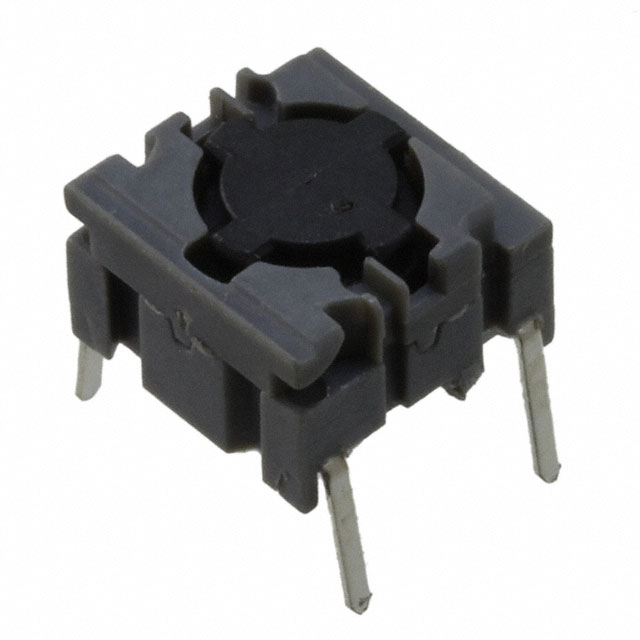

MEC Switches 5GTH935NCNO	Polyphenylene Sulfide (PPS)	1 mm	1000000 Cycles		6.4 mm	SPDT	On-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Non-Illuminated	0.05 A 24 VDC

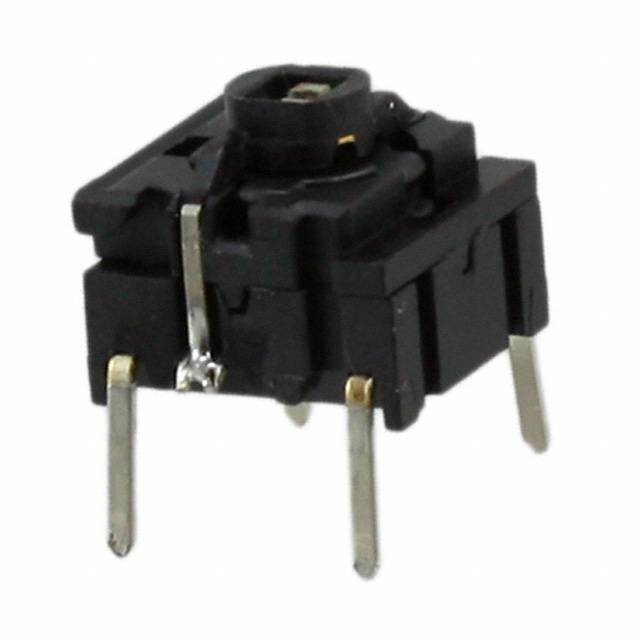

MEC Switches 5GTH9358222	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Green/Red LED	6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Illuminated	0.05 A 24 VDC	2 VDC 2.2 VDC
MEC Switches 5GTH920Q	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles		6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	0.2 kgf	Top Actuated	Non-Illuminated	0.05 A 24 VDC

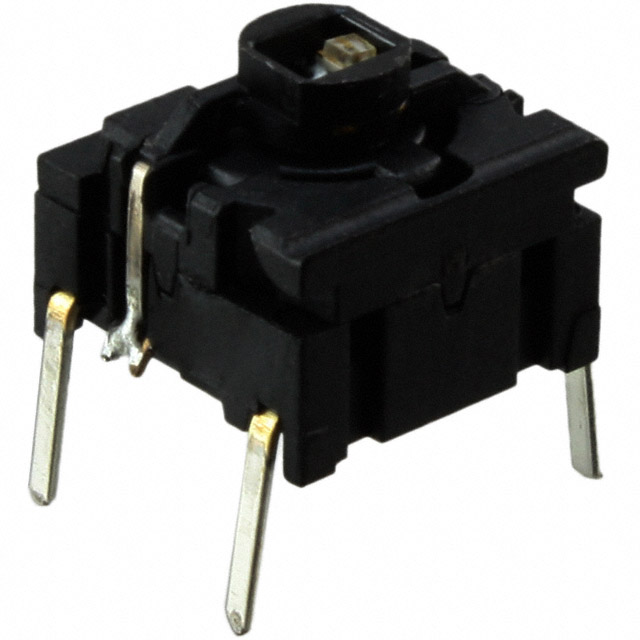

MEC Switches 5GTH93522	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Green LED	6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Illuminated	0.05 A 24 VDC	2.2 VDC

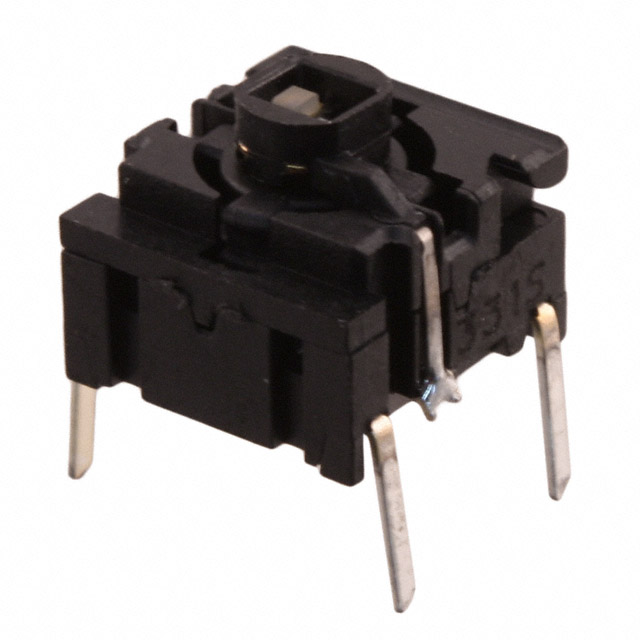

MEC Switches 5GTH93582	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	LED Red	6.4 mm	SPST-NO	Off-Mom	160 °C	-40 C	10.1 mm	10.1 mm	Sealed - Flux Protection	IP67 - Dust Tight Waterproof	PC Pin	Through Hole	Plunger for Cap	350 gf	Top Actuated	Illuminated	0.05 A 24 VDC	2 VDC
